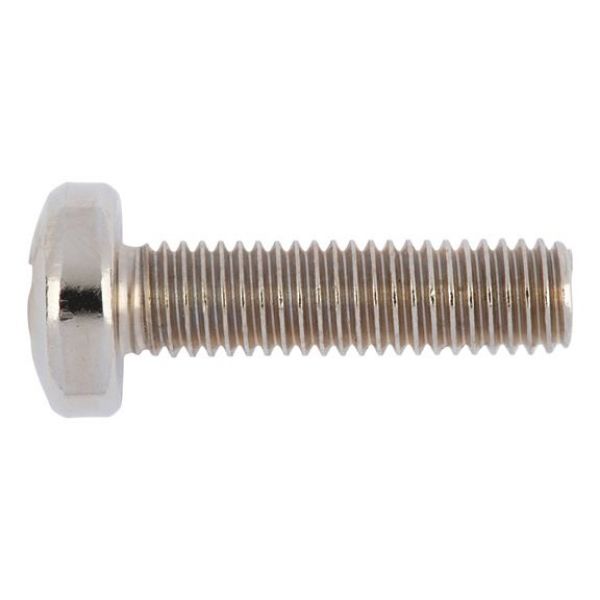

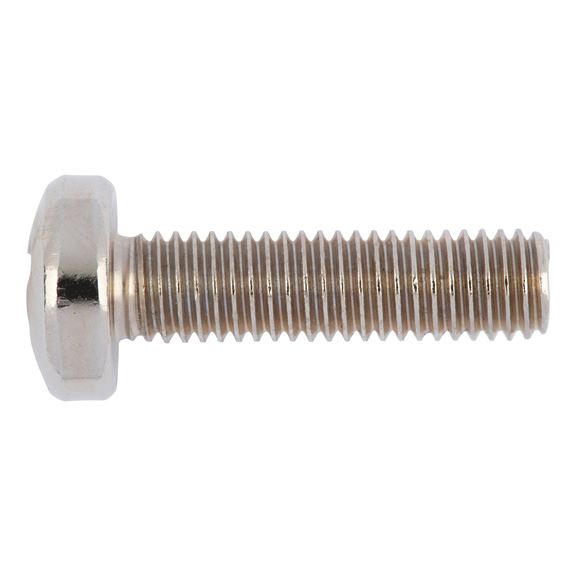

Oval-head screws with H cross recess

Article No. 00469258

DIN 7985, steel 4.8, nickel-plated H SCR-RSD-DIN7985-4.8-H1-(E2J)-M2,5X8

€2.01 inc. VAT price per 100 PCS

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

DIN 7985, steel 4.8, nickel-plated

Notice

DIN 7985 has been withdrawn and replaced by ISO 7045. There is some similarity (some head heights and head diameters changed | thread lengths changed | penetration depths of recessed heads changed | standard title of raised countersunk head screw changed to flat head screw).

Specification
Technical Information
Documents

DIN 7985, steel 4.8, nickel-plated

Notice

Products specifications

Thread type x nominal diameter (d₁)	M2.5
Length (l₁)	8 mm
Head diameter (d_k)	5 mm
Head height (k₁)	2 mm
Standards	DIN 7985
Material	Steel
Property class	4.8
Surface	Nickel-plated
RoHS-compliant	Yes
Head type	Pan head
Drive type	Crosshead
Internal drive	H1
Thread type	Metric thread
Pitch	0.45 mm
Thread format	Standard metric thread
Product class	A
