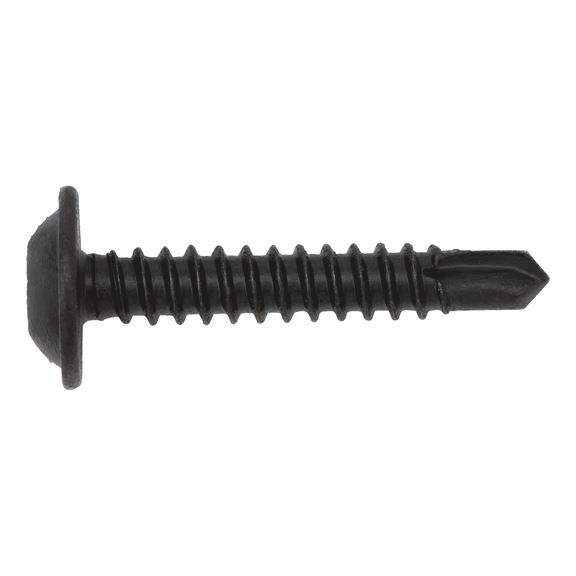

Pan head drilling screw with collar and AW drive pias®

Article No. 021874813

pias, zinc flake steel, pan head, flange, AW SCR-DBIT-PANHD-FLG-AW25-(ZFBM)-4,8X13 ZEBRA PIAS

€13.88 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

Stahl, Zinklamellenbeschichtung schwarz, mit AW-Antrieb

Drilling, threading, screwing-in — all in one work step

Therefore considerably reduced time and effort

Exact drilling diameter for each screw connection

Prevents installation errors

AW drive system:

Enhanced torque transmission
Longer life
Optimum centring
Better mounting output thanks to fatigue-free screwing in; the required contact pressure for transmission of the torques is considerably lower
Largest possible contact surface of bit in screw drive
Even force distribution prevents damage to the surface-protection coating and therefore ensures better resistance to corrosion.

Included: 1 bit

Notice

The pressed-on flange generates a lower surface pressure, which helps to prevent stress cracks.

Stahl, Zinklamellenbeschichtung schwarz, mit AW-Antrieb

Drilling, threading, screwing-in — all in one work step

Therefore considerably reduced time and effort

Exact drilling diameter for each screw connection

Prevents installation errors

AW drive system:

Enhanced torque transmission
Longer life
Optimum centring
Better mounting output thanks to fatigue-free screwing in; the required contact pressure for transmission of the torques is considerably lower
Largest possible contact surface of bit in screw drive
Even force distribution prevents damage to the surface-protection coating and therefore ensures better resistance to corrosion.

Included: 1 bit

Notice

The pressed-on flange generates a lower surface pressure, which helps to prevent stress cracks.

Application area

The self-drilling screw for fastening plastic and thin sheet metal to metal sub-structures

Products specifications

Material	Steel
Surface	Flake zinc black
Nominal diameter (d₁)	4.8 mm
Length (l₁)	13 mm
Head diameter (d_k)	12.75 mm
Head height (k₁)	3.6 mm
Drill tip length (l_p)	4.5 mm
Other standard	Company standard
Head type	Pan head
Internal drive	AW25
Thread type	Self-tapping screw thread
For min. substructure thickness	1.5 mm
Max. material thickness to be drilled through (metal)	4 mm
Max. attachment thickness (l_B)	4 mm
Min./max. recommended installation speed (idling)	1200-1800 U/min(rpm)
RoHS-compliant	Yes
