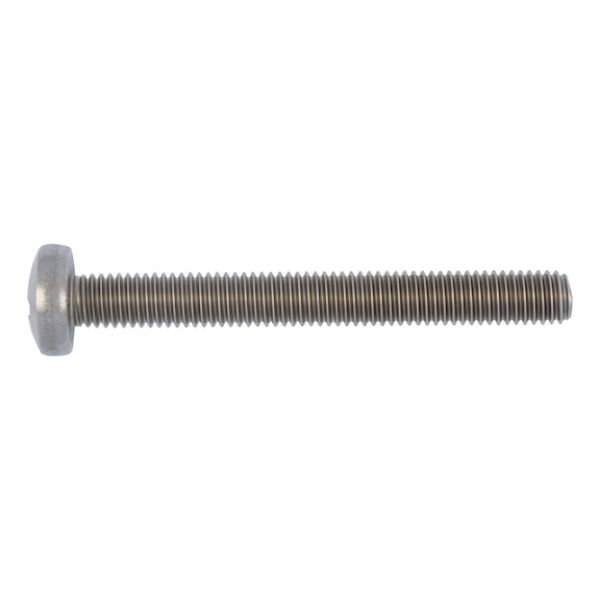

Pan head screw with H cross recess DIN 7985, A2 stainless steel, plain

Article No. 028336

DIN 7985 stainless steel A2 plain H SCR-RSD-DIN7985-A2/70-H1-M3X6

€0.03 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Notice

DIN 7985 has been withdrawn and replaced by ISO 7045. There is some similarity (some head heights and head diameters changed | thread lengths changed | penetration depths of recessed heads changed | standard title of raised countersunk head screw changed to flat head screw).

Specification
Technical Information
Documents

Notice

Products specifications

Thread type x nominal diameter (d₁)	M3
Length (l₁)	6 mm
Head diameter (d_k)	6 mm
Head height (k₁)	2.4 mm
Standards	DIN 7985
Material	Stainless steel A2
Property class	70
Surface	Plain
RoHS-compliant	Yes
Head type	Pan head
Drive type	Crosshead
Internal drive	H1
Thread type	Metric thread
Pitch	0.5 mm
Thread form	Standard metric thread
Product class	A
