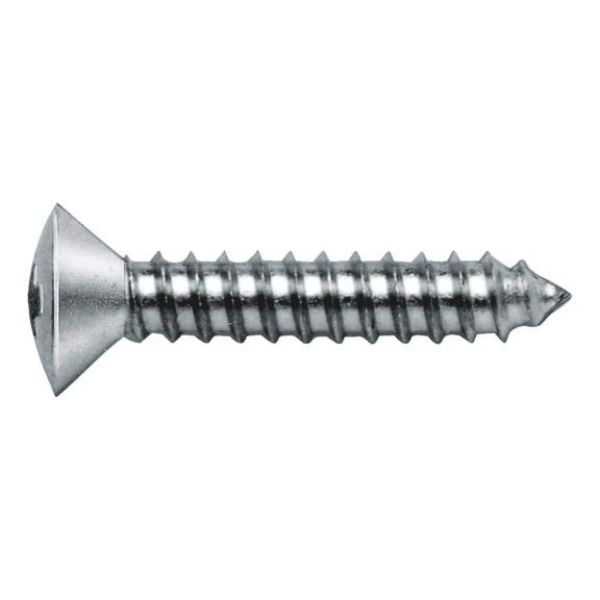

Pan head tapping screw, C shape with H recessed head

Article No. 01244816

DIN 7983, plain A2 stain. steel, H, shape C point. SCR-RSDCS-DIN7983-C-H2-A2-4,8X16

€4.48 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

DIN 7983, bare A2 stainless steel. With Phillips head.

DIN 7983, bare A2 stainless steel. With Phillips head.

Products specifications

Material	Stainless steel A2
Surface	Bare
Form	C
Nominal diameter (d₁)	4.8 mm
Head diameter (d_k)	9.5 mm
Length (l₁)	16 mm
Head height (k₁)	3 mm
Internal drive	H2
Standards	DIN 7983
Head type	Raised countersunk head
Thread type	Self-tapping screw thread
RoHS-compliant	Yes
Declaration of performance (EU-CPR)	No

Würth Catalogue(2)

Catalogue page as PDF 1 | 2

Datasheets(1)

CAD Data (available after login)
