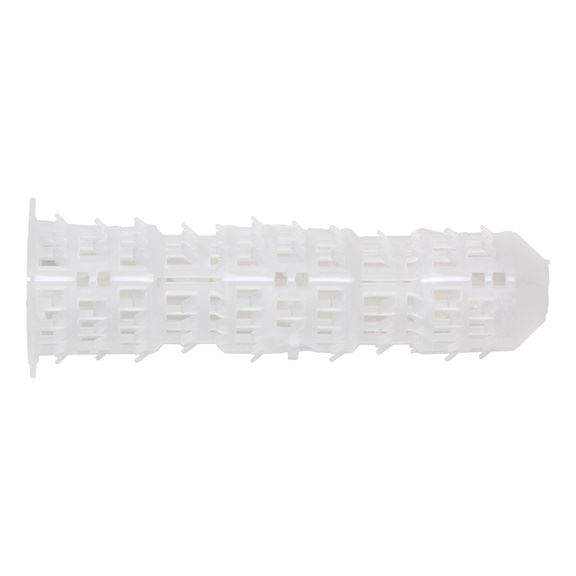

Perforated sleeve WIT-SH

Article No. 090344121
Plastic sieve sleeve WIT-SH ANC-(WIT-SH)-PLA-12X50
€0.83 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
For ALLROUNDER WIT-VM 250 injection system, masonry + WIT-SH perforated sleeve

Masonry individual attachment (system with perforated sleeve WIT-SH):

  • ALLROUNDER chemical injection mortar WIT-VM 250, anchor rod WIT-AS, female thread sleeve WIT-IG
  • Required for anchoring in perforated brick masonry and aerated concrete (only WIT-SH 18x95)
  • The anchor rods (WIT-AS) or female thread sleeves (WIT-IG) will be held centrally in the perforated sleeve during mounting
  • The perforated sleeve barbs keep the perforated sleeve or anchor rod (short dimensions) from falling out during mounting — overhead mounting
Proof of Performance

European Technical Assessment ETA-13/1040: Individual attachment plus solid and perforated brick masonry, aerated concrete

(ALLROUNDER WIT-VM 250 chemical injection mortar, anchor rod WIT-AS, female thread sleeve WIT-IG)

For ALLROUNDER WIT-VM 250 injection system, masonry + WIT-SH perforated sleeve

Masonry individual attachment (system with perforated sleeve WIT-SH):

  • ALLROUNDER chemical injection mortar WIT-VM 250, anchor rod WIT-AS, female thread sleeve WIT-IG
  • Required for anchoring in perforated brick masonry and aerated concrete (only WIT-SH 18x95)
  • The anchor rods (WIT-AS) or female thread sleeves (WIT-IG) will be held centrally in the perforated sleeve during mounting
  • The perforated sleeve barbs keep the perforated sleeve or anchor rod (short dimensions) from falling out during mounting — overhead mounting
Proof of Performance

European Technical Assessment ETA-13/1040: Individual attachment plus solid and perforated brick masonry, aerated concrete

(ALLROUNDER WIT-VM 250 chemical injection mortar, anchor rod WIT-AS, female thread sleeve WIT-IG)

Products specifications
Diameter 12 mm
Length 50 mm
Material Plastic
Nominal drill-bit diameter (d 0) 12 mm
Drill hole depth (h 0) 55 mm
Effective anchoring depth (h ef) 50 mm
Suitable for anchor rod WIT-AS M6/50<br>WIT-AS M8/50
Required injection mortar WIT-PM 200<br>WIT-VM 250<br>WIT-NORDIC
Approval ETA-12/0164<br>ETA-13/1040<br>ETA-12/0166<br>ETA-16/0757

Würth Catalogue(2)

Catalogue page as PDF 1 |  2 |  3 |  4 |  5 |  6

Flip catalog

Datasheets(1)

CAD Data (available after login)

Certificates/Documents(1)

Approval/Assessment 1

Products specifications
Diameter 12 mm
Length 50 mm
Material Plastic
Nominal drill-bit diameter (d 0) 12 mm
Drill hole depth (h 0) 55 mm
Effective anchoring depth (h ef) 50 mm
Suitable for anchor rod WIT-AS M6/50<br>WIT-AS M8/50
Required injection mortar WIT-PM 200<br>WIT-VM 250<br>WIT-NORDIC
Approval ETA-12/0164<br>ETA-13/1040<br>ETA-12/0166<br>ETA-16/0757
