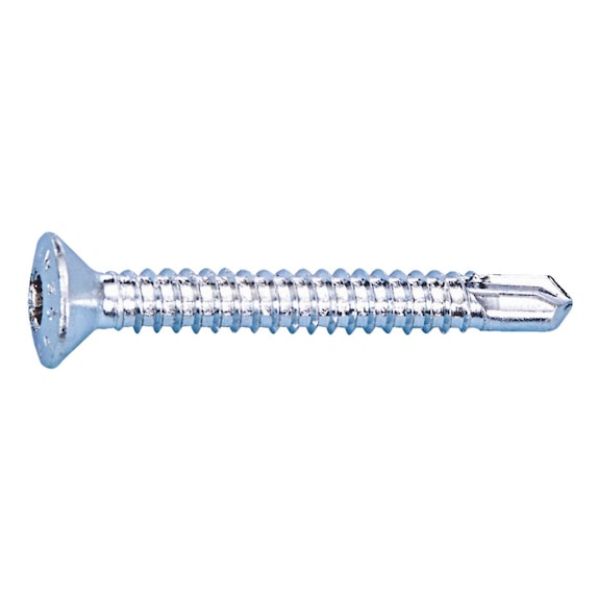

pias® drilling screw, raised countersunk head with AW drive

Article No. 02054232
pias steel zinc plated raised countersunk head AW SCR-DBIT-RSDCS-AW20-(A3K)-4,2X32 ZEBRA PIAS
€0.05 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
Zinc-plated steel, blue passivated (A3K). Raised countersunk head in flat design with AW drive

Drilling, threading, screwing-in - all in one work step

Therefore considerably reduced time and effort

Exact drilling diameter for each screw connection

  • Resulting in minimisation of thread tolerance
  • Always an optimum connection

Prevents installation errors

AW drive system:

  • Enhanced torque transmission
  • Longer service life
  • Optimum centring
  • Better mounting output thanks to fatigue-free screwing in; the required contact pressure for transmission of the torques is considerably lower
  • Largest possible contact surface of bit in screw drive
  • Even force distribution prevents damage to the surface-protection coating and therefore ensures better resistance to corrosion
Notice
  • Contact pressure during use approx. 100 N, screw in with depth stop if necessary
  • Drilling screws must be processed with a suitable drill driver (e.g. cordless drill driver with depth stop)
  • The use of impact screwdrivers is not permitted
  • Drilling screws must be attached perpendicular to the surface of the component

Galvanized drilling screws may only be used where dampness is not to be expected. For fasteners with a construction approval, the approval, and in particular Part 2 "Special regulations", must always be observed.

Zinc-plated steel, blue passivated (A3K). Raised countersunk head in flat design with AW drive

Drilling, threading, screwing-in - all in one work step

Therefore considerably reduced time and effort

Exact drilling diameter for each screw connection

  • Resulting in minimisation of thread tolerance
  • Always an optimum connection

Prevents installation errors

AW drive system:

  • Enhanced torque transmission
  • Longer service life
  • Optimum centring
  • Better mounting output thanks to fatigue-free screwing in; the required contact pressure for transmission of the torques is considerably lower
  • Largest possible contact surface of bit in screw drive
  • Even force distribution prevents damage to the surface-protection coating and therefore ensures better resistance to corrosion
Notice
  • Contact pressure during use approx. 100 N, screw in with depth stop if necessary
  • Drilling screws must be processed with a suitable drill driver (e.g. cordless drill driver with depth stop)
  • The use of impact screwdrivers is not permitted
  • Drilling screws must be attached perpendicular to the surface of the component

Galvanized drilling screws may only be used where dampness is not to be expected. For fasteners with a construction approval, the approval, and in particular Part 2 "Special regulations", must always be observed.

Products specifications
Material Steel
Surface Zinc plated
Nominal diameter (d1) 4.2 mm
Length (l1) 32 mm
Head diameter (dk) 8.1 mm
Head height (k1) 3.7 mm
Drill tip length (lp) 3.7 mm
Other standard Company standard
Head type Raised countersunk head
Internal drive AW20
Thread type Self-tapping screw thread
Thread design Full thread
Shape of tip Drilling tip
Min. recommended substructure thickness 1.5 mm
Max. material thickness to be drilled through (metal) 3.5 mm
Min./max. recommended installation speed (idling) 1700-2500 rpm
RoHS-compliant Yes
Products specifications
Material Steel
Surface Zinc plated
Nominal diameter (d1) 4.2 mm
Length (l1) 32 mm
Head diameter (dk) 8.1 mm
Head height (k1) 3.7 mm
Drill tip length (lp) 3.7 mm
Other standard Company standard
Head type Raised countersunk head
Internal drive AW20
Thread type Self-tapping screw thread
Thread design Full thread
Shape of tip Drilling tip
Min. recommended substructure thickness 1.5 mm
Max. material thickness to be drilled through (metal) 3.5 mm
Min./max. recommended installation speed (idling) 1700-2500 rpm
RoHS-compliant Yes
