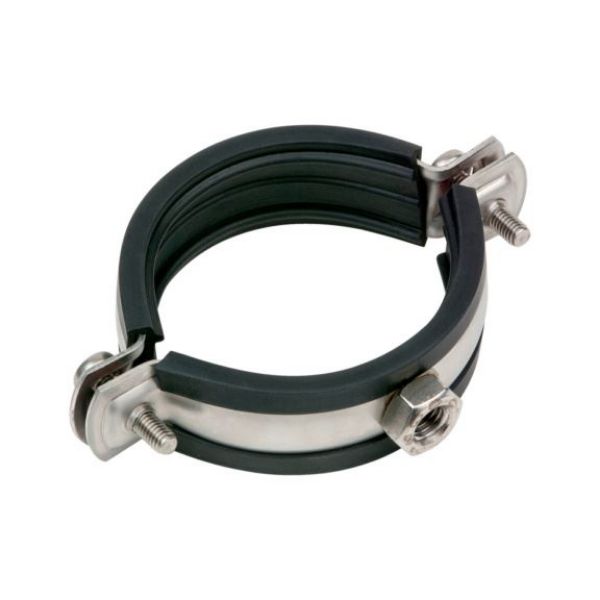

Pipe clamp TIPP® stainless steel A4 - C2C

Article No. 0865208169

A4 stainless steel pipe clamp TIPP PIPCLMP-SST-A4-M10-(159-169MM) TIPP

€15.34 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

Two-piece pipe clamp for mounting pipelines in any technical system with significant load requirements.

Cradle to Cradle^®-certified

Upgrading the building using non-hazardous materials
Wider range of application for GreenBuilding and building certification in accordance with LEED^®, BREEAM^® and DGNB

Notice

Rubber insert: Not suitable for contact with food

Two-piece pipe clamp for mounting pipelines in any technical system with significant load requirements.

Cradle to Cradle^®-certified

Upgrading the building using non-hazardous materials
Wider range of application for GreenBuilding and building certification in accordance with LEED^®, BREEAM^® and DGNB

Notice

Rubber insert: Not suitable for contact with food

Application area

Mounting of pipelines in any technical system, such as: Food/beverage industry, chemical industry, solar equipment, outdoor piping.

Products specifications

Min./max. grip range (ØD)	159-169 mm
Length (l)	220 mm
Connection thread (G)	M10
Metal-band width (B_M)	25 mm
Metal belt thickness (t_M)	1.5 mm
Permissible load	1500 N
Material	Stainless steel A4, 1.4401
Min./max. temperature resistance	-50 to 110 °C
Weight	337 g
Halogen-free	Yes
Silicone-free	Yes
Surface	Bare
