Plastic frame anchor W-FRA 10 H galvanised steel -DWL-(W-FRAH10)-HX-HD PL-ZP-TX40-SW13-10-10X80 -912910601

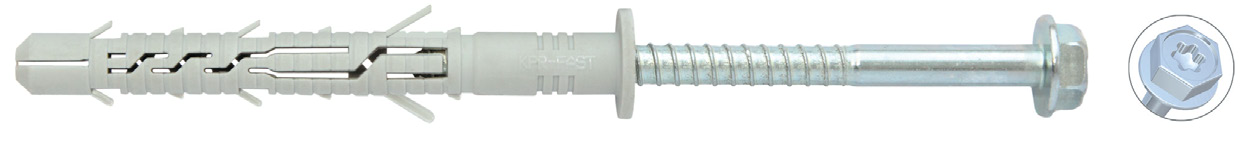

Plastic frame anchor W-FRA H 10 Stainless Steel A4

Article No. 912910704

FRAME FIXING W-FRA H 10 with hexagon screw + pressed-on washer 10mm x 140mm Stainless Steel A4 DWL-(W-FRAH10)-HX-HD PL-A4-TX40-SW13-70-10X140

€4.19 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Benefits:

• Can be loaded immediately – no waiting
time

• Very strong twist lock

• Universal frame-fixing anchor (concrete,
masonry of perforated and solid brick,
aerated concrete)

• The anchor sleeve and special screw are

• Pre-assembled. Reduces installation efforts.

Specification
Technical Information
Documents

Benefits:

• Can be loaded immediately – no waiting
time

• Very strong twist lock

• Universal frame-fixing anchor (concrete,
masonry of perforated and solid brick,
aerated concrete)

• The anchor sleeve and special screw are

• Pre-assembled. Reduces installation efforts.

Products specifications

Anchor diameter	10 mm
Anchor length (l)	140 mm
Max. attachment height (t fix)	70 mm
Nominal drill-bit diameter (d 0)	10 mm
Through-hole in the component to be connected (d f)	11 mm
Fire resistance rating	R90
Material	Stainless steel A4

Products specifications

Anchor diameter	10 mm
Anchor length (l)	140 mm
Max. attachment height (t fix)	70 mm
Nominal drill-bit diameter (d 0)	10 mm
Through-hole in the component to be connected (d f)	11 mm
Fire resistance rating	R90
Material	Stainless steel A4
