Plastic frame anchor W-FRA 10 galvanised steel - DWL-(W-FRA10)-PLA-(A2K)-TX40-70-10X140

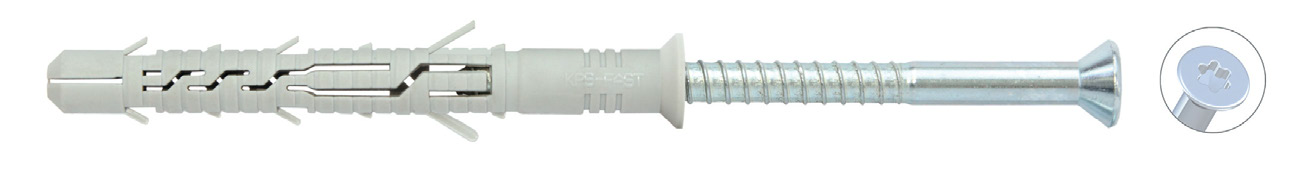

Plastic frame anchor W-FRA 10 Stainless Steel A4

Article No. 912910508

FRAME FIXING W-FRA 10 10mm x 230mm Stainless Steel A4 DWL-(W-FRA10)-PLA-A4-TX40-70-10X230

€8.26 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

Packaging Unit *

Benefits:

• Can be loaded immediately – no waiting
time

• Very strong twist lock

• Universal frame-fixing anchor (concrete,
masonry of perforated and solid brick,
aerated concrete)

• The anchor sleeve and special screw are

• Pre-assembled. Reduces installation efforts.

Benefits:

• Can be loaded immediately – no waiting
time

• Very strong twist lock

• Universal frame-fixing anchor (concrete,
masonry of perforated and solid brick,
aerated concrete)

• The anchor sleeve and special screw are

• Pre-assembled. Reduces installation efforts.

Products specifications

Anchor diameter	10 mm
Anchor length (l)	230 mm
Max. attachment height (t fix)	160 mm
Nominal drill-bit diameter (d 0)	10 mm
Through-hole in the component to be connected (d f)	11 mm
Fire resistance rating	R90
Material	Stainless steel A4

Products specifications

Anchor diameter	10 mm
Anchor length (l)	230 mm
Max. attachment height (t fix)	160 mm
Nominal drill-bit diameter (d 0)	10 mm
Through-hole in the component to be connected (d f)	11 mm
Fire resistance rating	R90
Material	Stainless steel A4
