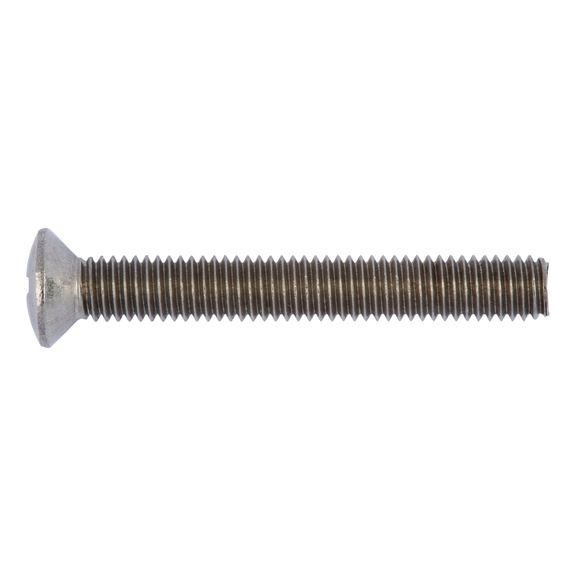

Raised countersunk head screw with H recessed head

Article No. 0294550

DIN 966 bare stainless steel A4 SCR-RSDCS-DIN966-A4-H2-M5X50

€31.86 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 966, stainless steel A4, plain

Notice

DIN 966 has been withdrawn and replaced by ISO 7047. There is some limited similarity (some head heights and head diameters have been changed | thread lengths changed | strength class 5.8 and 8.8 omitted | recessed head penetration depths changed).

Specification
Technical Information
Documents

DIN 966, stainless steel A4, plain

Notice

Products specifications

Thread type x nominal diameter (d₁)	M5
Length (l₁)	50 mm
Head diameter (d_k)	9.2 mm
Head height (k₁)	2.5 mm
Standards	DIN 966
Material	Stainless steel A4
Property class	50
Surface	Bare
RoHS-compliant	Yes
Head type	Raised countersunk head
Drive type	Crosshead
Internal drive	H2
Thread type	Metric thread
Pitch	0.8 mm
Thread format	Standard metric thread
Product class	A
