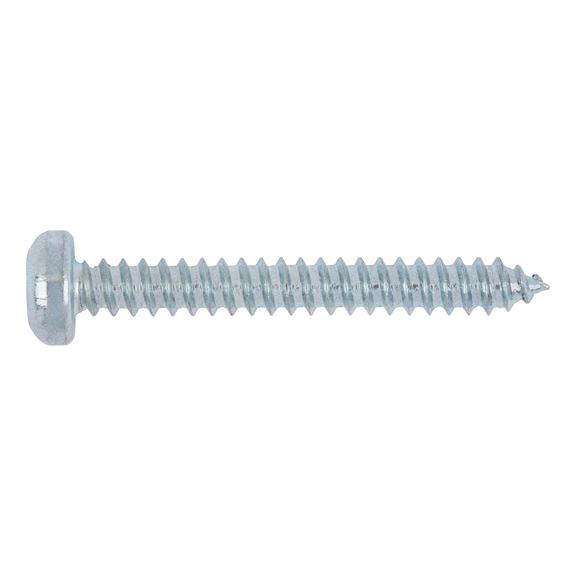

Raised countersunk tapping screw, shape C with AW drive

Article No. 011124213

WN 111 steel galvanised pan head AW SCR-PANHD-WN111-C-AW20-(A2K)-4,2X13

€49.56 inc. VAT price per 1000 PCS

AVAILABLE

Qty:

+ -

WN 111-compliant with AW drive, galvanised steel, blue passivated (A2K), shape C, pointed.

AW drive system:

Enhanced torque transmission
Longer life
Optimum centring
Better mounting output thanks to fatigue-free screwing in; the required contact pressure for transmission of the torques is considerably lower
Largest possible contact surface of bit in screw drive
Even force distribution prevents damage to the surface-protection coating and therefore ensures better resistance to corrosion

WN 111-compliant with AW drive, galvanised steel, blue passivated (A2K), shape C, pointed.

AW drive system:

Enhanced torque transmission
Longer life
Optimum centring
Better mounting output thanks to fatigue-free screwing in; the required contact pressure for transmission of the torques is considerably lower
Largest possible contact surface of bit in screw drive
Even force distribution prevents damage to the surface-protection coating and therefore ensures better resistance to corrosion

Products specifications

Material	Steel
Surface	Galvanised
Form	C
Nominal diameter (d₁)	4.2 mm
Length (l₁)	13 mm
Head diameter (d_k)	8 mm
Head height (k₁)	3.1 mm
Internal drive	AW20
Head type	Pan head
Declaration of performance (EU-CPR)	No
Standards	ISO 1478, WN 111

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Material	Steel
Surface	Galvanised
Form	C
Nominal diameter (d₁)	4.2 mm
Length (l₁)	13 mm
Head diameter (d_k)	8 mm
Head height (k₁)	3.1 mm
Internal drive	AW20
Head type	Pan head
Declaration of performance (EU-CPR)	No
Standards	ISO 1478, WN 111
