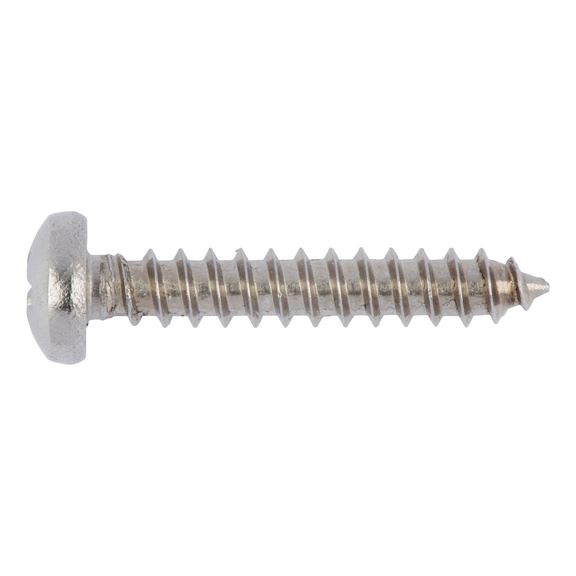

Raised countersunk tapping screw shape C with H recessed head

Article No. 01194895

DIN 7981 stainless steel A2 pan head H form C SCR-PANHD-DIN7981-C-H2-A2-4,8X9,5

€5.19 inc. VAT price per 100 PCS

Available on Order
Price may vary

Qty:

+ -

Packaging Unit *

DIN 7981 A2 stainless steel, shape C, pointed

Tapping screws belong to the thread-moulding screw family. When screwed into a pre-prepared core hole, these screws shape their own counter-thread.
Guideline values for selecting the correct core hole diameter are contained in DIN 7975.
Shape C = thread with tip
Shape F = thread without tip
Shape R = thread with rounded tip

Notice

Self-tapping screws made from stainless steels are softer than those made from case-hardening steel. These screws are therefore not able to form a counter thread in steel plates. For this reason, they should only be used in soft materials, such as aluminium.

DIN 7981 A2 stainless steel, shape C, pointed

Tapping screws belong to the thread-moulding screw family. When screwed into a pre-prepared core hole, these screws shape their own counter-thread.
Guideline values for selecting the correct core hole diameter are contained in DIN 7975.
Shape C = thread with tip
Shape F = thread without tip
Shape R = thread with rounded tip

Notice

Products specifications

Material	Stainless steel A2
Surface	Bare
Form	C
Nominal diameter (d₁)	4.8 mm
Length (l₁)	9.5 mm
Head diameter (d_k)	9.5 mm
Head height (k₁)	3.55 mm
Internal drive	H2
DIN	7981
Head type	Pan head
Declaration of performance (EU-CPR)	No
Standards	DIN 7981
