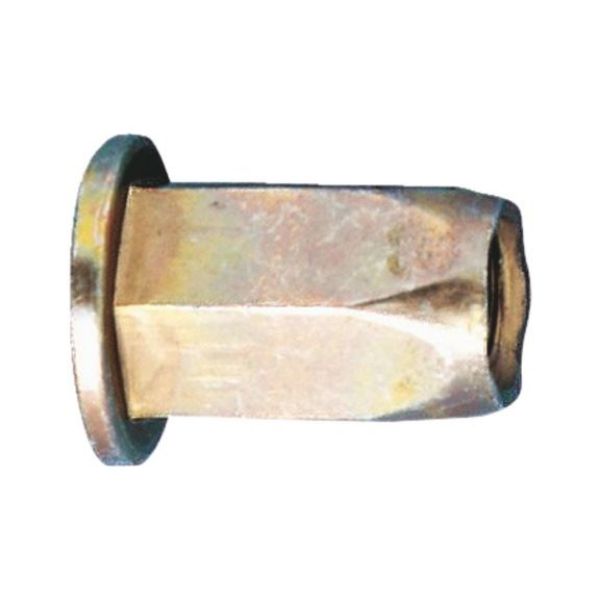

Rivet nut with round pan head and hexagon shank

Article No. 094830614

Zinc-plated steel, rnd pan head, hex shank NUT-RIV-MHD-HEX-(0,5-3,0)-(A2K)-14,5-M6

€44.70 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

Galvanised steel, blue coated (A2K)

Galvanised steel, blue coated (A2K)

Application areaEspecially for vehicles from VW and Daimler

Products specifications

Thread type x nominal diameter (D)	M6
Head diameter (d₁)	13 mm
Length (l₁)	14.5 mm
Head height (k₁)	1.5 mm
Min./max. grip range (s₁)	0.5-3.0 mm
Width across flats	9 mm
Head type	Truss head
Tensile fracture load	16500 N
Max. tightening torque	13 Nm
Material	Steel

Würth Catalogue(2)

Catalogue page as PDF 1 | 2

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (D)	M6
Head diameter (d₁)	13 mm
Length (l₁)	14.5 mm
Head height (k₁)	1.5 mm
Min./max. grip range (s₁)	0.5-3.0 mm
Width across flats	9 mm
Head type	Truss head
Tensile fracture load	16500 N
Max. tightening torque	13 Nm
Material	Steel
