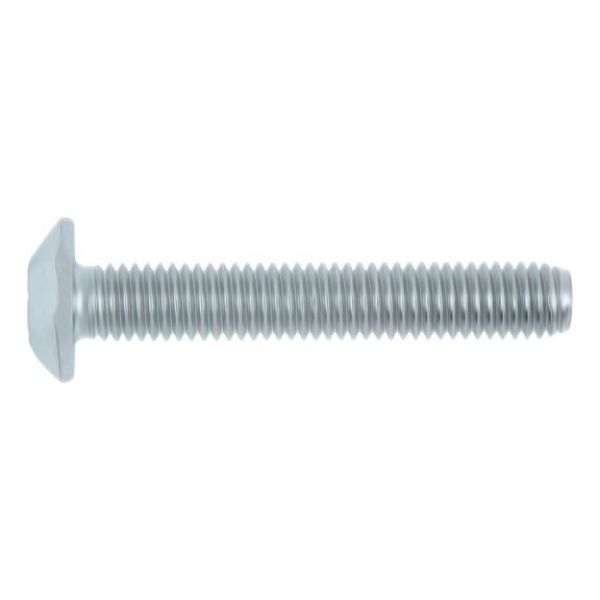

Round pan head safety screw with AW drive and plug - SCR-MHD-AW40-(A2K)-M8X50

Round pan head safety screw with AW drive and plug - SCR-MHD-AW40-(A2K)-M8X50

Round pan head safety screw with AW drive and plug - SCR-MHD-AW40-(A2K)-M8X50

Round pan head safety screw with AW drive and plug

Article No. 02651850

Steel galvanised AW metric thread SCR-MHD-AW40-(A2K)-M8X50

€0.79 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Safety screw, galvanised steel, blue passivated (A2K)

For the secure attachment of protective screens, cellar grills and similar items.

Material:

Galvanised steel, blue passivated
Steel, Ruspert II-coated

Head shape:

Decorative head with AW 40 drive and screw-in nut

Strength 5.8

With metric thread

General technical approval in conjunction with Würth drive-in anchor W-ED/W-ED/S

Notice

Bit 1/4 AW 40 and screw-in nuts are included in every package.

Proof of Performance

European Technical Approval; Option 7 for non-cracked concrete

European Technical Approval, multiple attachment of non-load-bearing systems in concrete

Specification
Technical Information
Documents

Safety screw, galvanised steel, blue passivated (A2K)

For the secure attachment of protective screens, cellar grills and similar items.

Material:

Galvanised steel, blue passivated
Steel, Ruspert II-coated

Head shape:

Decorative head with AW 40 drive and screw-in nut

Strength 5.8

With metric thread

General technical approval in conjunction with Würth drive-in anchor W-ED/W-ED/S

Notice

Bit 1/4 AW 40 and screw-in nuts are included in every package.

Proof of Performance

European Technical Approval; Option 7 for non-cracked concrete

European Technical Approval, multiple attachment of non-load-bearing systems in concrete

Products specifications

Thread type x nominal diameter (d₁)	M8
Length (l₁)	50 mm
Head diameter (d_k)	17 mm
Head height (k₁)	4.5 mm
Standards	CS
Material	Steel
Surface	Galvanised
RoHS-compliant	Yes
Head type	Ornament head
Drive type	AW
Internal drive	AW40
Thread type	Metric thread
Pitch	1.25 mm
Thread format	Standard metric thread

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (d₁)	M8
Length (l₁)	50 mm
Head diameter (d_k)	17 mm
Head height (k₁)	4.5 mm
Standards	CS
Material	Steel
Surface	Galvanised
RoHS-compliant	Yes
Head type	Ornament head
Drive type	AW
Internal drive	AW40
Thread type	Metric thread
Pitch	1.25 mm
Thread format	Standard metric thread
