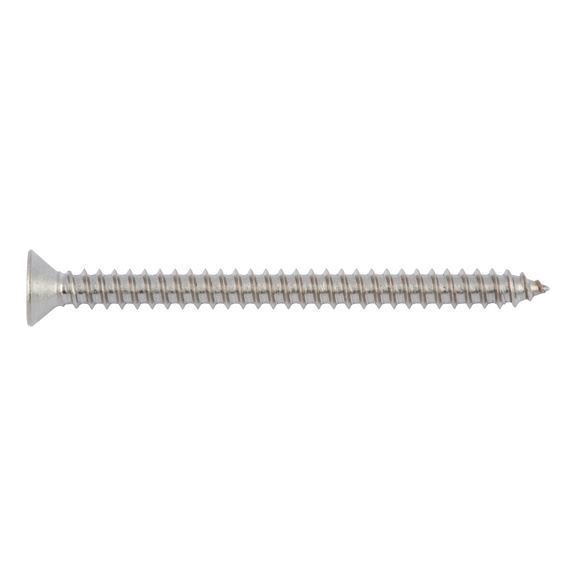

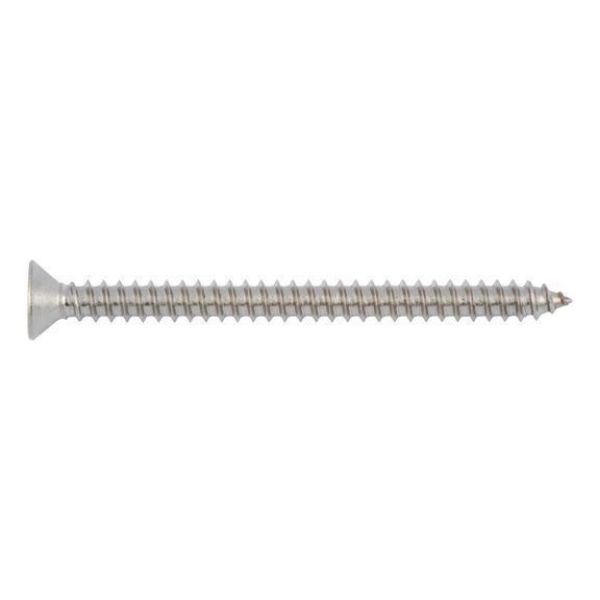

COUNTERSUNK TAPPING SCREW SHAPE C WITH H RECESSED HEAD A4

Article No. 1273525

DIN 7982 A4 stainless steel, countersunk head H, shape C SCR-CSK-SELF-TAPPING-A4-DIN7982-M3,5X25

€5.31 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 7982 A2 stainless steel, type C, with tip

Tapping screws belong to the thread-moulding screw family. When screwed into a pre-prepared core hole, these screws shape their own counter-thread.
Guideline values for selecting the correct core hole diameter are contained in DIN 7975.
Shape C = thread with tip
Shape F = Thread without tip
Shape R = Thread with rounded tip

Notice

Stainless steel tapping screws are weaker than case-hardening steel tapping screws. This means that these screws cannot form a counter thread in sheet steel. For this reason, they are used in soft materials such as aluminium only.

Specification
Technical Information

DIN 7982 A2 stainless steel, type C, with tip

Tapping screws belong to the thread-moulding screw family. When screwed into a pre-prepared core hole, these screws shape their own counter-thread.
Guideline values for selecting the correct core hole diameter are contained in DIN 7975.
Shape C = thread with tip
Shape F = Thread without tip
Shape R = Thread with rounded tip

Notice

Products specifications

Material	Stainless steel A4
Surface	Bare
RoHS-compliant	Yes
Form	C
Nominal diameter (d₁)	3.5 mm
Length (l₁)	25 mm
Head diameter (d_k)	6.8 mm
Head height (k₁)	2.1 mm
Internal drive	H2
Drive type	H
Head type	Countersunk head
Thread type	Self-tapping screw thread
Declaration of performance (EU-CPR)	No

Products specifications

Material	Stainless steel A4
Surface	Bare
RoHS-compliant	Yes
Form	C
Nominal diameter (d₁)	3.5 mm
Length (l₁)	25 mm
Head diameter (d_k)	6.8 mm
Head height (k₁)	2.1 mm
Internal drive	H2
Drive type	H
Head type	Countersunk head
Thread type	Self-tapping screw thread
Declaration of performance (EU-CPR)	No
