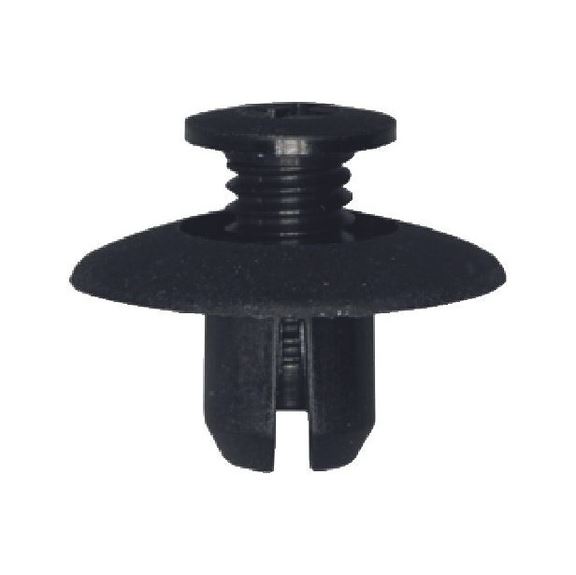

Screw rivet Type S

Article No. 0500785087
Screw rivet, type S MP-HONDA-THRRIV-W.SCR-BLACK-HDD20,0
€1.22 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
Open
  • Forms rivet systems capable of adjustment that can be loosened again simply.
  • The screw is knocked or turned into the rivet body for installation.
  • A screwdriver is used to remove.
Open
  • Forms rivet systems capable of adjustment that can be loosened again simply.
  • The screw is knocked or turned into the rivet body for installation.
  • A screwdriver is used to remove.
Products specifications
Min./max. drill hole diameter 7.9-8.1 mm
Min./max. attachment thickness 2-5.1 mm
Head diameter 4.8 mm
Width 20 mm
Height 3 mm
Rivet length 8.5 mm
Material PA 66 - Polyamide
Colour Black
Corresponds to original spare part number 90675SB0003, 9046708145
Products specifications
Min./max. drill hole diameter 7.9-8.1 mm
Min./max. attachment thickness 2-5.1 mm
Head diameter 4.8 mm
Width 20 mm
Height 3 mm
Rivet length 8.5 mm
Material PA 66 - Polyamide
Colour Black
Corresponds to original spare part number 90675SB0003, 9046708145
