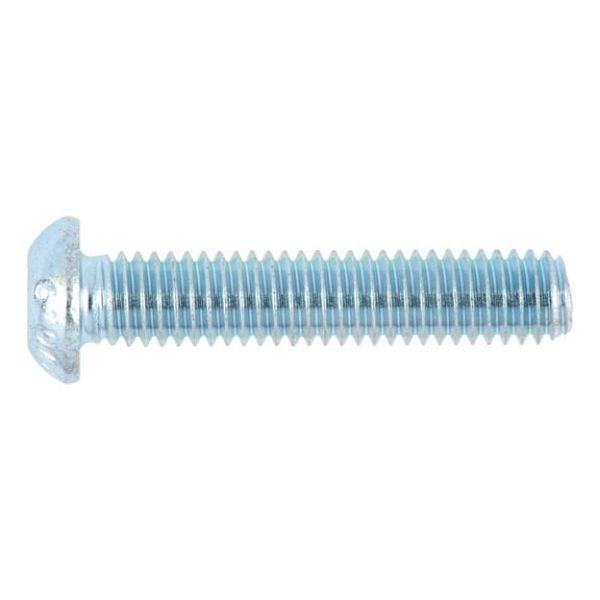

Screw with flattened half round head and hexagon socket

Article No. 006001825

ISO 7380-1 steel 010.9 galvanised SCR-ISO7380/1-010.9-IH5-(A2K)-M8X25

€24.19 inc. VAT price per 100 PCS

Available on Order
Price may vary

Qty:

+ -

ISO 7380-1, steel 010.9, galvanised blue passivated (A2K)

Notice

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 898-1

Specified dimensions not binding. Subject to technical changes!

ISO 7380-1, steel 010.9, galvanised blue passivated (A2K)

Notice

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 898-1

Specified dimensions not binding. Subject to technical changes!

Products specifications

Thread type x nominal diameter (d₁)	M8
Length (l₁)	25 mm
Head diameter (d_k)	14 mm
Head height (k₁)	4.4 mm
Standards	ISO 7380-1
Material	Steel
Property class	010.9
Surface	Galvanised
RoHS-compliant	Yes
Head type	Button head
Drive type	Hexagon socket
Internal drive	IH5
Thread type	Metric thread
Pitch	1.25 mm
Thread format	Standard metric thread
Product class	A
