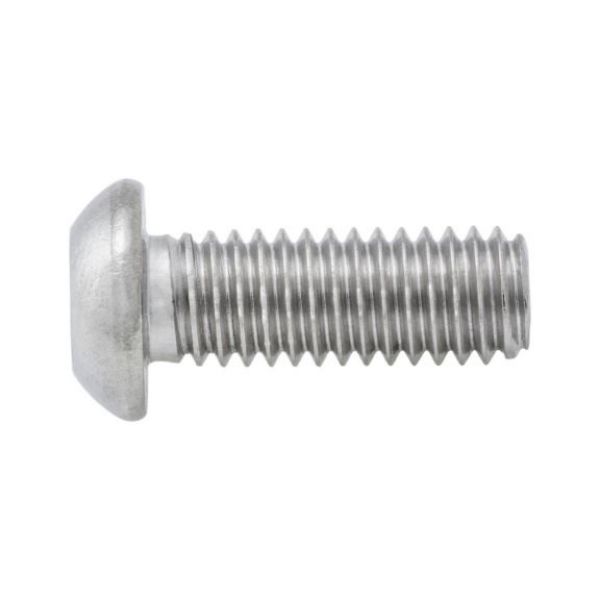

Screw with flattened half round head and hexagon socket

Article No. 009801645

ISO 7380-1 stainless steel A2 plain SCR-RSD-ISO7380/1-A2/070-IH4-M6X45

€25.49 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

ISO 7380-1, stainless steel, A2-070, plain

Notice

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 3506-1

ISO 7380-1, stainless steel, A2-070, plain

Notice

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 3506-1

Products specifications

Thread type x nominal diameter (d₁)	M6
Length (l₁)	45 mm
Head diameter (d_k)	10.5 mm
Head height (k₁)	3.3 mm
Standards	ISO 7380-1
Material	Stainless steel A2
Property class	070
Surface	Bare
RoHS-compliant	Yes
Head type	Button head
Drive type	Hexagon socket
Internal drive	IH4
Thread type	Metric thread
Pitch	1 mm
Thread format	Standard metric thread
Product class	A

Würth Catalogue(2)

Catalogue page as PDF 1 | 2

Datasheets(1)

CAD Data (available after login)
