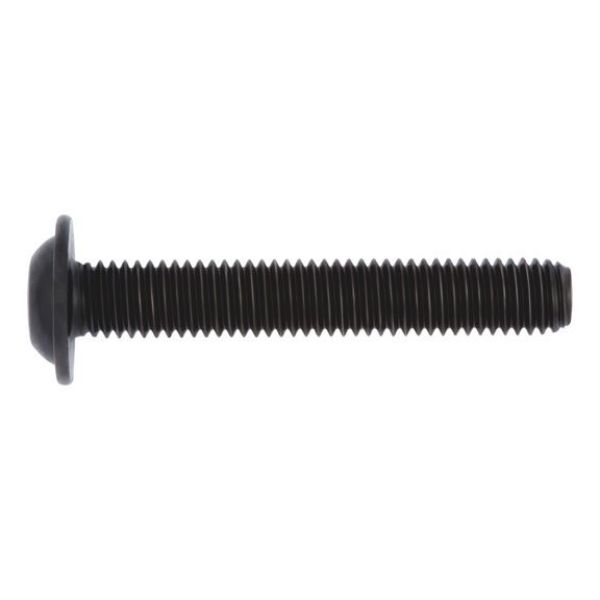

Screw with flattened half round head with collar and hexagon socket

Article No. 00600412

ISO 7380-2 steel 010.9 black galvanised SCR-ISO7380/2-010.9-IH2,5-(A2S)-M4X12

€10.38 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

ISO 7380-2, steel 010.9, black galvanised, chromated (A2S)

Notice

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 898-1

ISO 7380-2, steel 010.9, black galvanised, chromated (A2S)

Notice

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 898-1

Products specifications

Thread type x nominal diameter (d₁)	M4
Length (l₁)	12 mm
Head diameter (d_c)	9.4 mm
Head height (k₁)	2.2 mm
Standards	ISO 7380-2
Material	Steel
Property class	010.9
Surface	Black, galvanised
RoHS-compliant	No
Head type	Button head with collar
Head details	With collar
Drive type	Hexagon socket
Internal drive	IH2.5
Thread type	Metric thread
Pitch	0.7 mm
Thread format	Standard metric thread
Product class	A

Würth Catalogue(2)

Catalogue page as PDF 1 | 2 | 3

Products specifications

Thread type x nominal diameter (d₁)	M4
Length (l₁)	12 mm
Head diameter (d_c)	9.4 mm
Head height (k₁)	2.2 mm
Standards	ISO 7380-2
Material	Steel
Property class	010.9
Surface	Black, galvanised
RoHS-compliant	No
Head type	Button head with collar
Head details	With collar
Drive type	Hexagon socket
Internal drive	IH2.5
Thread type	Metric thread
Pitch	0.7 mm
Thread format	Standard metric thread
Product class	A
