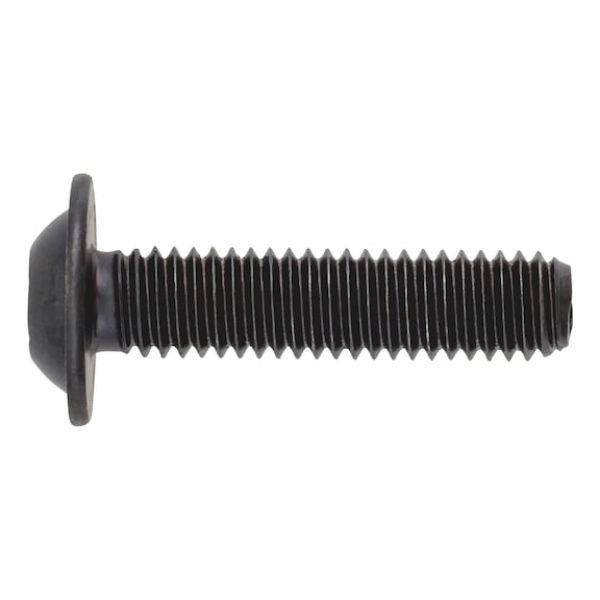

Screw with flattened half round head with collar and hexagon socket ISO 7380-2, steel 10.9, plain

Article No. 006003620

ISO 7380-2 steel 010.9, plain SCR-COL-ISO7380/2-010.9-HS4-M6X20 Art.-no. 006003620 | EAN 4024835185240

€0.12 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

Notice

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 898-1

Notice

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 898-1

Products specifications

Thread type x nominal diameter (d₁)	M6
Length (l₁)	20 mm
Head diameter (d_c)	13.6 mm
Head height (k₁)	3.3 mm
Internal drive	HS4
Standards	ISO 7380-2
Material	Steel
Property class	010.9
Surface	Plain
Head type	Button head with collar
Head details	With collar
Drive type	Hexagon socket
Thread type	Metric thread
Thread form	Standard metric thread
Thread design	Full thread
Product class	A
RoHS-compliant	Yes

Würth Catalogue (2)

Products specifications

Thread type x nominal diameter (d₁)	M6
Length (l₁)	20 mm
Head diameter (d_c)	13.6 mm
Head height (k₁)	3.3 mm
Internal drive	HS4
Standards	ISO 7380-2
Material	Steel
Property class	010.9
Surface	Plain
Head type	Button head with collar
Head details	With collar
Drive type	Hexagon socket
Thread type	Metric thread
Thread form	Standard metric thread
Thread design	Full thread
Product class	A
RoHS-compliant	Yes
