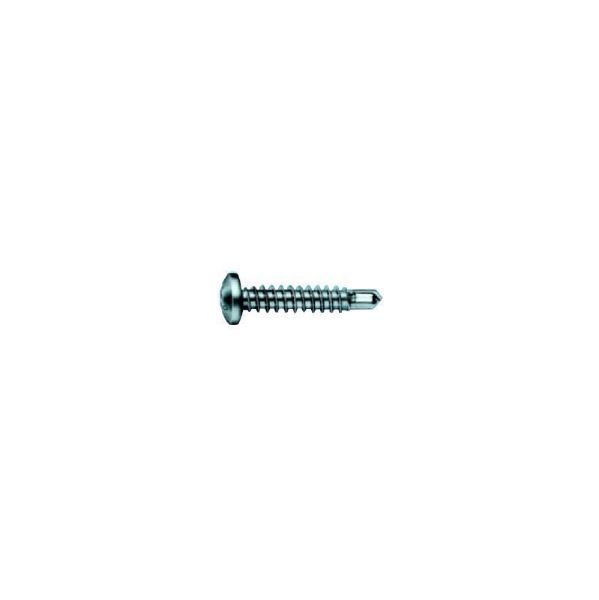

Picture of SELFDRILLING SCREW WITH PANHEAD

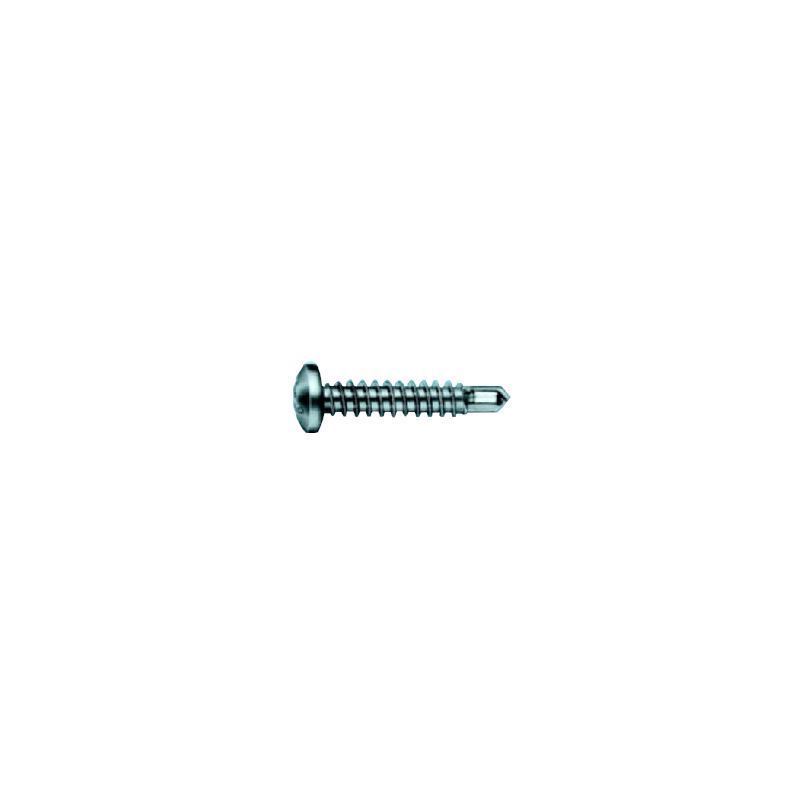

Picture of SELFDRILLING SCREW WITH PANHEAD

Drilling screw, flat head with recessed head, H pias<SUP>®</SUP> - SCR-DBIT-PANHD-H2-(A3K)-4,8X25

Drilling screw, flat head with recessed head, H pias<SUP>®</SUP> - SCR-DBIT-PANHD-H2-(A3K)-4,8X25

Drilling screw, flat head with recessed head, H pias<SUP>®</SUP> - SCR-DBIT-PANHD-H2-(A3K)-4,8X25

SELFDRILLING SCREW WITH PANHEAD

Article No. 504924819

Pias Galvanised steel, flat head, H SCR-DBIT-PANHD-H2-(A3K)-4,8X19

€0.07 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Features:

• Are suitable for steel-steel joints (e.g. Fasten sheets) with plate thickness < 1.25 mm and steel-steel joints < 2 x 1.25 mm

• Selfdrilling screw with pan head, PH drive, coating A2K

• According Norm EN ISO 15481(substitution for DIN 7504-M)

• Available in ORSY and INDUSTRY packaging

Specification
Technical Information

Features:

• Are suitable for steel-steel joints (e.g. Fasten sheets) with plate thickness < 1.25 mm and steel-steel joints < 2 x 1.25 mm

• Selfdrilling screw with pan head, PH drive, coating A2K

• According Norm EN ISO 15481(substitution for DIN 7504-M)

• Available in ORSY and INDUSTRY packaging

Products specifications

Material	Steel
Surface	Galvanised
Nominal diameter (d₁)	4.8 mm
Length (l₁)	19 mm
Head diameter (d_k)	9.5 mm
Head height (k₁)	3.55 mm
Other standard	WN 211
Head type	Flat head
Internal drive	H2
Thread type x spindle-thread diameter	Self-tapping screw thread
Max. material thickness	4 mm
RoHS-compliant	Yes

Products specifications

Material	Steel
Surface	Galvanised
Nominal diameter (d₁)	4.8 mm
Length (l₁)	19 mm
Head diameter (d_k)	9.5 mm
Head height (k₁)	3.55 mm
Other standard	WN 211
Head type	Flat head
Internal drive	H2
Thread type x spindle-thread diameter	Self-tapping screw thread
Max. material thickness	4 mm
RoHS-compliant	Yes
