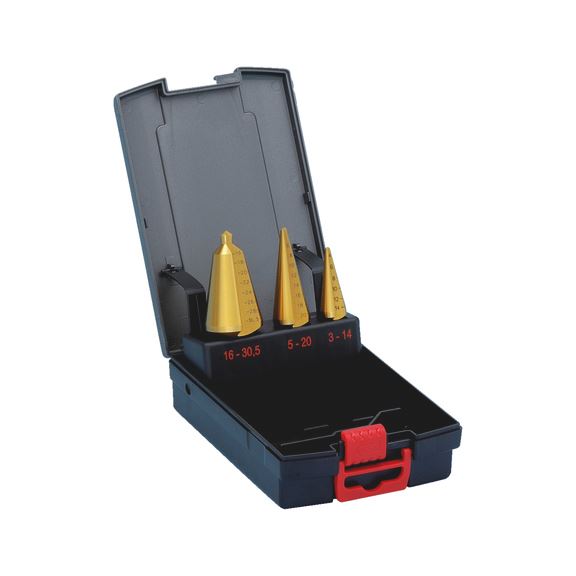

Sheet metal conical drill bit box, titanium nitride HSS - SHTMETCONIDRL-SORT-HSS-TIN-(D3-30,5MM)

Sheet metal conical drill bit box, titanium nitride HSS

Article No. 069402501

Sheet metal conical drill bit set HSS, tit-nitride SHTMETCONIDRL-SORT-HSS-TIN-(D3-30,5MM) ZEBRA

€187.86 inc. VAT price per 1 PCS

LOW STOCK

Packaging Unit *

Qty:

+ -

3 pieces: 1 each of Ø 3-14 mm; Ø 5-20 mm; Ø 16-30.5 mm

Cutting speed and feed rate increase by up to 100%
Service life is doubled or even quadrupled
CBN (cubical boron nitride), deep ground
Stepless drilling and widening of holes within the diameter range of 3-61 mm
With two cutting edges
No countersinking or pre-drilling required
Burr-free drilling without causing the sheet metal to deform and excellent heat conductivity for longer service life thanks to axial and radial CBN relief grinding
Mounting shank with three-phase grinding
With laser scale for easy identification of the required drill hole diameter

Notice

Speed table included
Increase service life and cutting performance using drilling and cutting oil or cutting paste

Specification
Application
Documents

3 pieces: 1 each of Ø 3-14 mm; Ø 5-20 mm; Ø 16-30.5 mm

Cutting speed and feed rate increase by up to 100%
Service life is doubled or even quadrupled
CBN (cubical boron nitride), deep ground
Stepless drilling and widening of holes within the diameter range of 3-61 mm
With two cutting edges
No countersinking or pre-drilling required
Burr-free drilling without causing the sheet metal to deform and excellent heat conductivity for longer service life thanks to axial and radial CBN relief grinding
Mounting shank with three-phase grinding
With laser scale for easy identification of the required drill hole diameter

Notice

Speed table included
Increase service life and cutting performance using drilling and cutting oil or cutting paste

Application area

For universal use

Also suitable for drilling very thin sheets

Würth Catalogue(2)

Catalogue page as PDF 1
