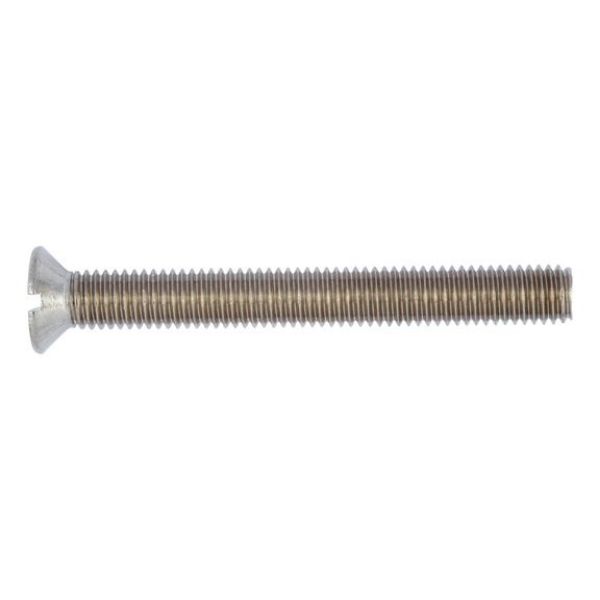

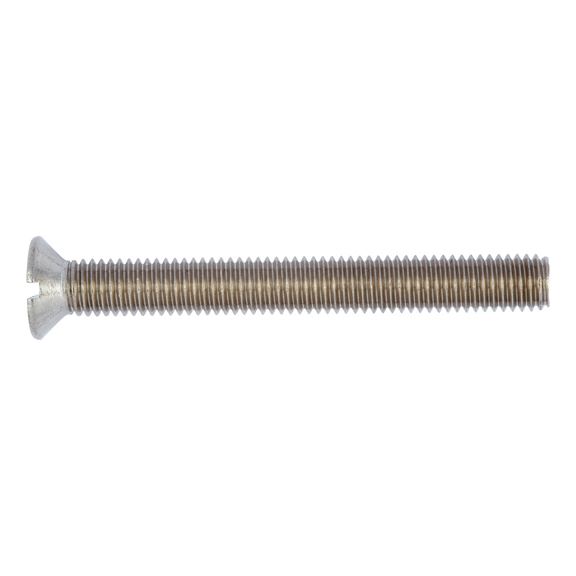

Slotted countersunk head screw

Article No. 0286660

DIN 963 plain A2 stainless steel SCR-CS-DIN963-A2-SL-M6X60

€0.24 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 963 A2 stainless steel, plain

NoticeDIN 963 has been withdrawn and replaced by ISO 2009. There is some limited similarity (some head heights and head diameters have been changed | Thread lengths changed | strength class 8.8 omitted | nominal Ø M10 removed).

Specification
Technical Information
Documents

DIN 963 A2 stainless steel, plain

Products specifications

Thread type x nominal diameter (d₁)	M6
Length (l₁)	60 mm
Head diameter (d_k)	11 mm
Head height (k₁)	3 mm
Standards	DIN 963
Material	Stainless steel A2
Property class	70
Surface	Bare
RoHS-compliant	Yes
Head type	Countersunk head
Drive type	Slot
Internal drive	Slot
Thread type	Metric thread
Pitch	1 mm
Thread format	Standard metric thread
Product class	A

Würth Catalogue(2)

Catalogue page as PDF 1 | 2 | 3 | 4

Flip catalog

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (d₁)	M6
Length (l₁)	60 mm
Head diameter (d_k)	11 mm
Head height (k₁)	3 mm
Standards	DIN 963
Material	Stainless steel A2
Property class	70
Surface	Bare
RoHS-compliant	Yes
Head type	Countersunk head
Drive type	Slot
Internal drive	Slot
Thread type	Metric thread
Pitch	1 mm
Thread format	Standard metric thread
Product class	A
