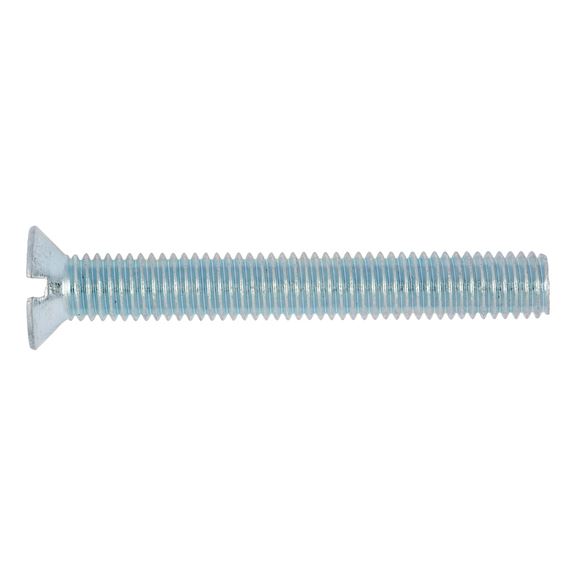

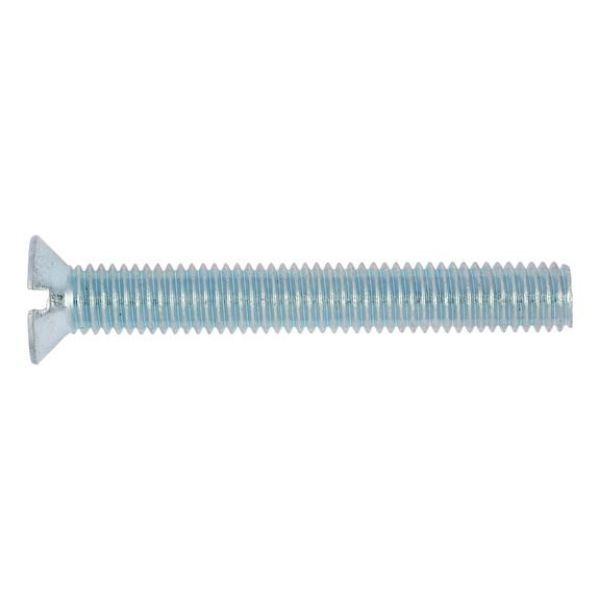

Slotted countersunk head screw

Article No. 0039830

DIN 963 galvanised steel 4.8 SCR-CS-DIN963-4.8-(A2K)-M8X30

€17.18 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 963, steel 4.8, galvanised, blue passivated (A2K)

NoticeDIN 963 has been withdrawn and replaced by ISO 2009. There is some limited similarity (some head heights and head diameters have been changed | Thread lengths changed | strength class 8.8 omitted | nominal Ø M10 removed).

Specification
Technical Information
Documents

DIN 963, steel 4.8, galvanised, blue passivated (A2K)

Products specifications

Thread type x nominal diameter (d₁)	M8
Length (l₁)	30 mm
Head diameter (d_k)	14.5 mm
Head height (k₁)	4 mm
Standards	DIN 963
Material	Steel
Property class	4.8
Surface	Galvanised
RoHS-compliant	Yes
Head type	Countersunk head
Drive type	Slot
Internal drive	Slot
Thread type	Metric thread
Pitch	1.25 mm
Thread format	Standard metric thread
Product class	A

Würth Catalogue(2)

Catalogue page as PDF 1 | 2 | 3 | 4

Flip catalog

Datasheets(1)

CAD Data (available after login)
