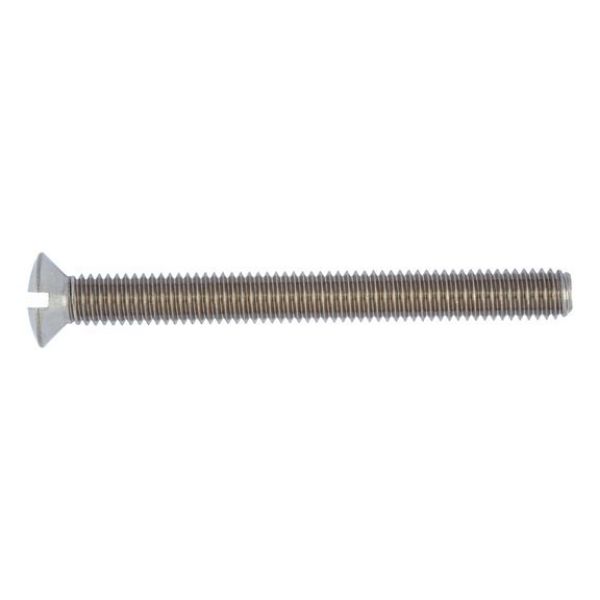

Slotted raised countersunk head screw

Article No. 0296840

DIN 964 bare stainless steel A4 SCR-RSDCS-DIN964-A4-SL-M8X40

€0.41 inc. VAT price per 1 PCS

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

DIN 964, stainless steel A4, plain

Notice

DIN 964 has been withdrawn and replaced by ISO 2010. There is some limited similarity (some head heights and head diameters have been changed | Thread lengths changed | strength class 8.8 omitted | nominal Ø

Specification
Technical Information
Documents

DIN 964, stainless steel A4, plain

Notice

Products specifications

Thread type x nominal diameter (d₁)	M8
Length (l₁)	40 mm
Head diameter (d_k)	14.5 mm
Head height (k₁)	4 mm
Standards	DIN 964
Material	Stainless steel A4
Property class	50
Surface	Bare
RoHS-compliant	Yes
Head type	Raised countersunk head
Drive type	Slot
Internal drive	Slot
Thread type	Metric thread
Pitch	1.25 mm
Thread format	Standard metric thread
Product class	A
