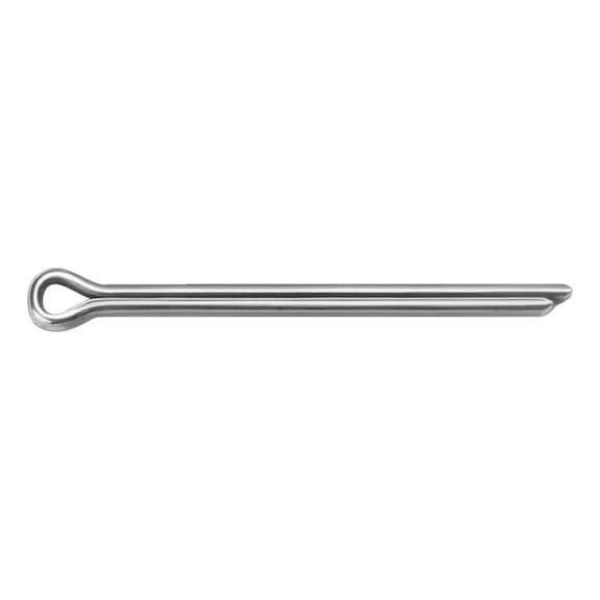

Split pin

Article No. 4832550

DIN 94 bare stainless steel A4 SPLTPIN-DIN94-A4-2,5X50

€12.59 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 94 stainless steel A4

To secure castellated nuts in conjunction with bolts or threaded pins with split pin hole (e.g. steering linkage and tracking gears in motor vehicles)
To secure split pin bolts

Specification
Technical Information
Documents

DIN 94 stainless steel A4

To secure castellated nuts in conjunction with bolts or threaded pins with split pin hole (e.g. steering linkage and tracking gears in motor vehicles)
To secure split pin bolts

Products specifications

Nominal diameter (d₁)	2.5 mm
Length (l₁)	50 mm
Longitudinal external diameter of ring (b)	5 mm
Transverse external diameter of ring (c)	4 mm
Length between two pins of a splint (a)	2.5 mm
Standards	DIN 94
Material	Stainless steel A4
Surface	Plain
RoHS-compliant	Yes

Products specifications

Nominal diameter (d₁)	2.5 mm
Length (l₁)	50 mm
Longitudinal external diameter of ring (b)	5 mm
Transverse external diameter of ring (c)	4 mm
Length between two pins of a splint (a)	2.5 mm
Standards	DIN 94
Material	Stainless steel A4
Surface	Plain
RoHS-compliant	Yes
