Spring cotter pin - SPGPIN-SNGLEYE-(A2K)-8X110

Spring cotter pin - SPGPIN-SNGLEYE-(A2K)-8X110

Spring cotter pin - SPGPIN-SNGLEYE-(A2K)-8X110

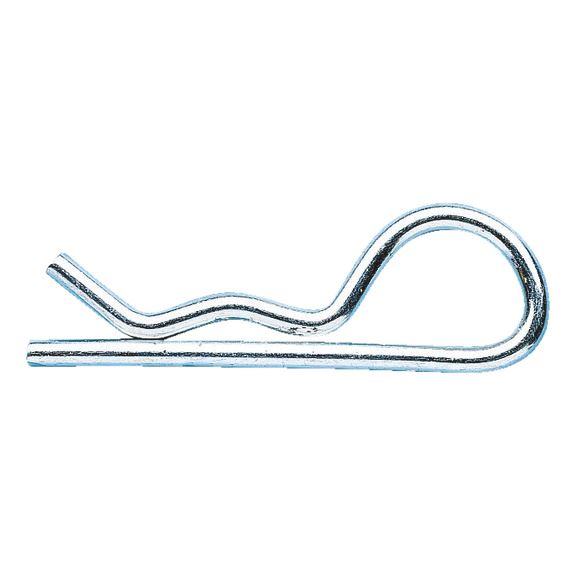

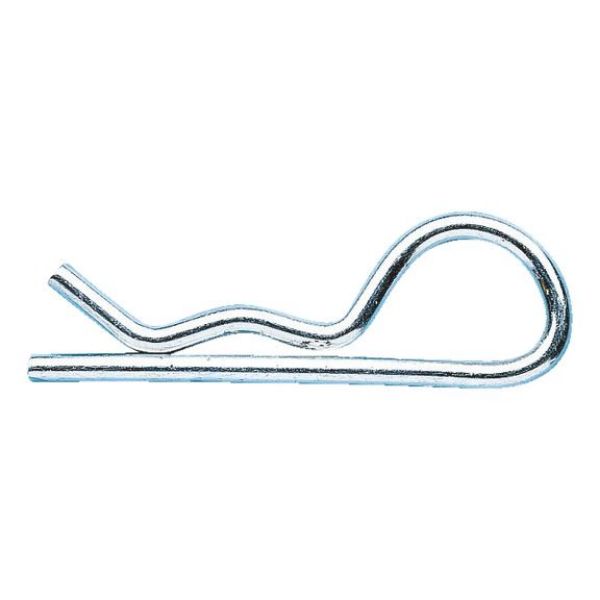

Spring cotter pin

Article No. 047381

Steel galvanised with single loop SPGPIN-SNGLEYE-(A2K)-8X110

€1.56 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

With single loop. Galvanised steel, blue passivated (A2K).

For securing bolts, pipes, racks etc.
Quick and easy fitting and removal
Reusable
Ends cut without any burrs

Specification
Technical Information
Documents

With single loop. Galvanised steel, blue passivated (A2K).

For securing bolts, pipes, racks etc.
Quick and easy fitting and removal
Reusable
Ends cut without any burrs

Products specifications

Nominal diameter (d₁)	8 mm
Internal diameter of ring (d₂)	35 mm
Min./max. grip range (d₃)	24-45 mm
Length (l₁)	130 mm
Material	Steel
Surface	Galvanised
RoHS-compliant	Yes
Version	With single eye
Diameter of hole	9 mm
Other standard	WN 473

Würth Catalogue(2)

Catalogue page as PDF 1 | 2

Datasheets(1)

CAD Data (available after login)

Products specifications

Nominal diameter (d₁)	8 mm
Internal diameter of ring (d₂)	35 mm
Min./max. grip range (d₃)	24-45 mm
Length (l₁)	130 mm
Material	Steel
Surface	Galvanised
RoHS-compliant	Yes
Version	With single eye
Diameter of hole	9 mm
Other standard	WN 473
