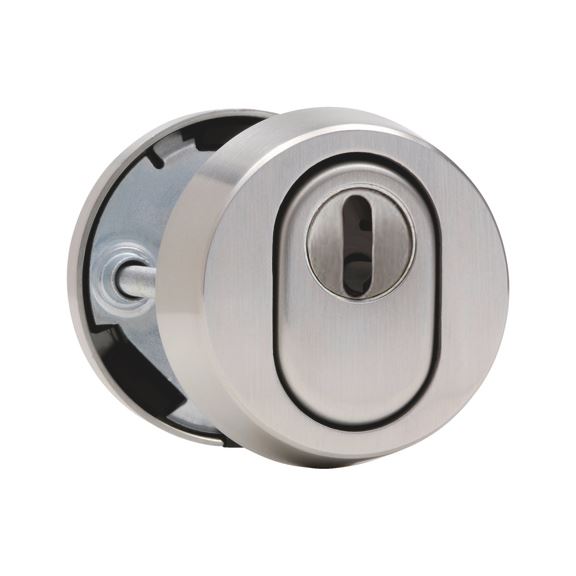

Stainless steel security rosette

Article No. 0687250003
Security rosette fitting with barrel cover SDF-A2-ROS-CC-14-MATT
€83.63 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
With cylinder cover fitted externally

Cylinder cover

This offers the best protection against Zieh-Fix® door-opening devices commonly used in break ins (extraction and breakage of cylinder)

Hidden 2-point screw connection of rosettes

Produces best-possible hold of rosette.

Specified dimensions not binding. Subject to technical changes.

With cylinder cover fitted externally

Cylinder cover

This offers the best protection against Zieh-Fix® door-opening devices commonly used in break ins (extraction and breakage of cylinder)

Hidden 2-point screw connection of rosettes

Produces best-possible hold of rosette.

Specified dimensions not binding. Subject to technical changes.

Application area

The security rosettes can be used for apartment entrance doors with a door thickness of 38-45 mm and for house doors with a door thickness of 63-75 mm.

Instructions

Inner rosette can be used to mark the holes. For mounting the security rosettes on doors of different thicknesses, use countersunk screws DIN 965 (M5 x 45 - 80).

Products specifications
Suitable for House doors<br>Apartment entrance doors<br>Office doors<br>Surgery doors
Material Stainless steel A2, 1.4301
Gloss level Matt
Fire protection certified No
Suitable for min./max. door thickness 38-75 mm
Suitable for min./max. profile-cylinder projection 10-15 mm
Thickness of external rosette 14 mm
Rosette diameter (outer) 55 mm
Rosette thickness (inner) 8 mm
Hole distance 38 mm
Cam diameter 8 mm
DIN direction DIN R/L
Products specifications
Suitable for House doors<br>Apartment entrance doors<br>Office doors<br>Surgery doors
Material Stainless steel A2, 1.4301
Gloss level Matt
Fire protection certified No
Suitable for min./max. door thickness 38-75 mm
Suitable for min./max. profile-cylinder projection 10-15 mm
Thickness of external rosette 14 mm
Rosette diameter (outer) 55 mm
Rosette thickness (inner) 8 mm
Hole distance 38 mm
Cam diameter 8 mm
DIN direction DIN R/L
