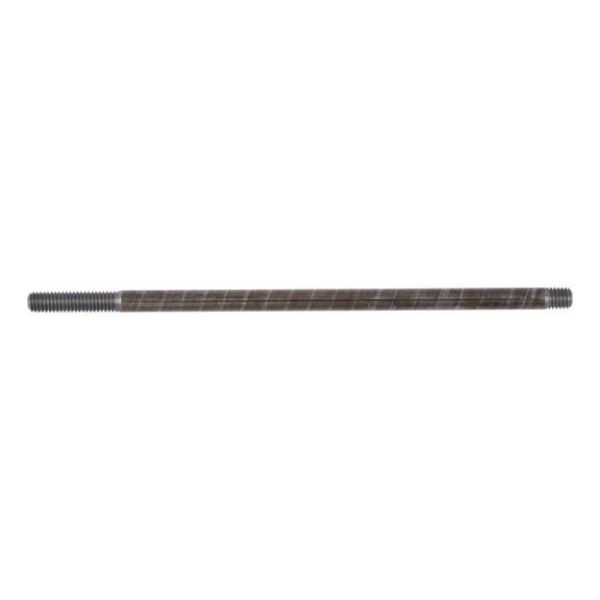

Stud with threaded end ≈ 1.25 d

Article No. 02508820

DIN 939 plain steel 8.8 STUD-DIN939-8.8-M8X20

€0.34 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

DIN 939, steel 8.8, plain

DIN 939, steel 8.8, plain

Products specifications

Thread type x nominal diameter (d₁)	M8
Length (l₁)	20 mm
Thread length (metric thread) (l₂)	14 mm
Thread length 2 (metric thread) (l₃)	10 mm
Standards	DIN 939
Material	Steel
Property class	8.8
Surface	Bare
RoHS-compliant	Yes
Head type	Without head
Drive type	Without drive
Thread type	Metric thread
Pitch	1.25 mm
Thread format	Standard metric thread
Product class	A

Würth Catalogue(2)

Catalogue page as PDF 1 | 2

Datasheets(1)

CAD Data (available after login)
