Thread extractor set

Article No. 069014

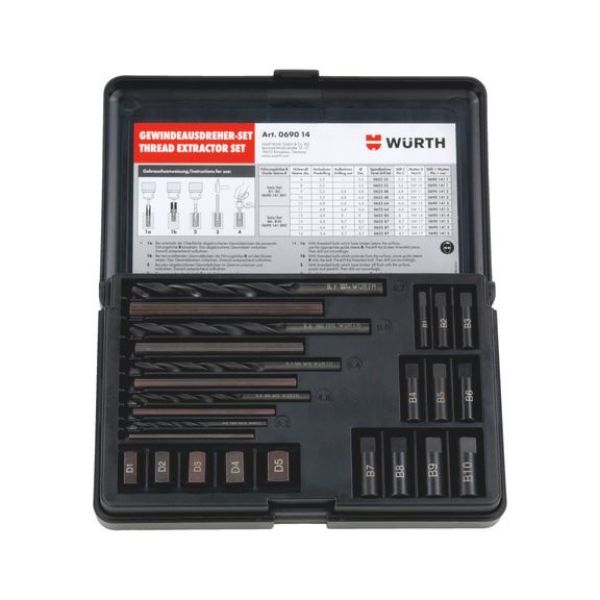

Threaded extractor set EXTR-THR-KIT-(M6-M16)
€159.64 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
25 pcs.

For broken-off screws and bolts from 6–16 mm or 1/4 to 5/8 inches

Complete set, also comprises necessary twist drills

Specially profiled extractor pins enlarge the stud bolt only slightly

Easy extraction of broken bolts in contrast to tapered extractors

Scope of delivery: Guide sleeves, spiral drills, extractor pins and nuts, operating instructions, high-quality plastic box

25 pcs.

For broken-off screws and bolts from 6–16 mm or 1/4 to 5/8 inches

Complete set, also comprises necessary twist drills

Specially profiled extractor pins enlarge the stud bolt only slightly

Easy extraction of broken bolts in contrast to tapered extractors

Scope of delivery: Guide sleeves, spiral drills, extractor pins and nuts, operating instructions, high-quality plastic box

Instructions

1a


Use a suitable guide sleeve for stud bolts snapped off beneath the surface. Pre-drill the snapped off threaded section. Then enlarge as required



1b


If the stud bolt is protruding, place the guide sleeve onto the bolt. Pre-drill the threaded bolt. Then enlarge as required



2


If the stud bolt is broken off flush, centre punch and pre-drill the bolt. Then enlarge as required



3


Hammer a suitable extractor pin into the drilled hole



4


Push extractor nut down to the bottom of the pin. Extract snapped off threaded bolt evenly without tilting

Products specifications
Product weight (per item) 682 g

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Products specifications
Product weight (per item) 682 g
