TIG welding rod for steel welding WSG 2 - WELDROD-TIG-WSG2-1,6MMX1M

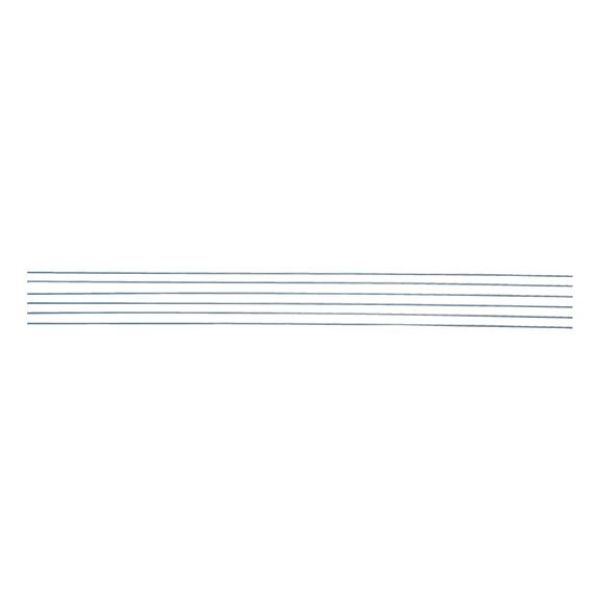

TIG welding rod for steel welding WSG 2

Article No. 09827716

TIG welding rod for steel welding WELDROD-TIG-WSG2-1,6MMX1M

€49.56 inc. VAT price per 5 KG

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

Designation in accordance with EN 440: W3Si1
Designation in accordance with EN ISO 636-A: W3Si1

Specification
Technical Information

Designation in accordance with EN 440: W3Si1
Designation in accordance with EN ISO 636-A: W3Si1

Products specifications

Wire diameter	1.6 mm
Length	1000 mm
Weight	5 kg
Material designation	WSG 2
Material	Low alloy steel, 1.5125, 11MnSi6
Mn composition of the brazing solder (weight-%)	1.5 %
Composition of the solder component (weight %) of C	0.1 %
SI composition of the brazing solder (weight-%)	0.8 %
Breaking elongation A5	27 %
Min. elasticity limit (Rp 0.2 value)	510 N/mm²
Tensile strength Rm	580 N/mm²

Products specifications

Wire diameter	1.6 mm
Length	1000 mm
Weight	5 kg
Material designation	WSG 2
Material	Low alloy steel, 1.5125, 11MnSi6
Mn composition of the brazing solder (weight-%)	1.5 %
Composition of the solder component (weight %) of C	0.1 %
SI composition of the brazing solder (weight-%)	0.8 %
Breaking elongation A5	27 %
Min. elasticity limit (Rp 0.2 value)	510 N/mm²
Tensile strength Rm	580 N/mm²
