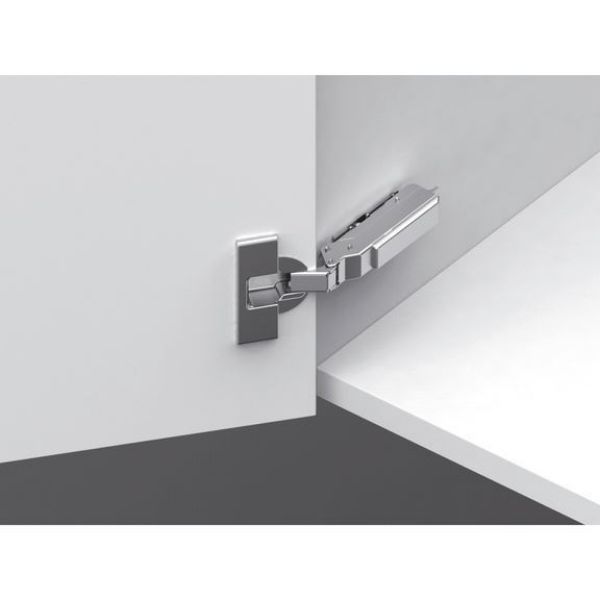

TIOMOS 110 - 110° hinge

Article No. F028138883
Tiomos 110 Click-on TIOMOS HINGE 110° K3 48/6 GRASS
€3.25 inc. VAT price per 1 PCS
LOW STOCK
*
+ -
• 110° opening angle

• Optimum reveals for door thicknesses up to 24 mm

• Convenient depth adjustment via worm gear

• 3-dimensional adjustment with appropriate mounting plate

Available in 3 versions:

• With integrated damper (3 adjustable damping levels)

• Without integrated damper

• Without self-closing mechanism (without spring)
• 110° opening angle

• Optimum reveals for door thicknesses up to 24 mm

• Convenient depth adjustment via worm gear

• 3-dimensional adjustment with appropriate mounting plate

Available in 3 versions:

• With integrated damper (3 adjustable damping levels)

• Without integrated damper

• Without self-closing mechanism (without spring)
Products specifications
Cranking 0
With spring Yes
Type of assembly Screw-on
Hole drilling 48/6 mm
Material Die-cast zinc
Surface Nickel plated
Opening angle 110 Degree
Door Overlay Full Overlay
Products specifications
Cranking 0
With spring Yes
Type of assembly Screw-on
Hole drilling 48/6 mm
Material Die-cast zinc
Surface Nickel plated
Opening angle 110 Degree
Door Overlay Full Overlay
