TIOMOS 160

Article No. F046138985

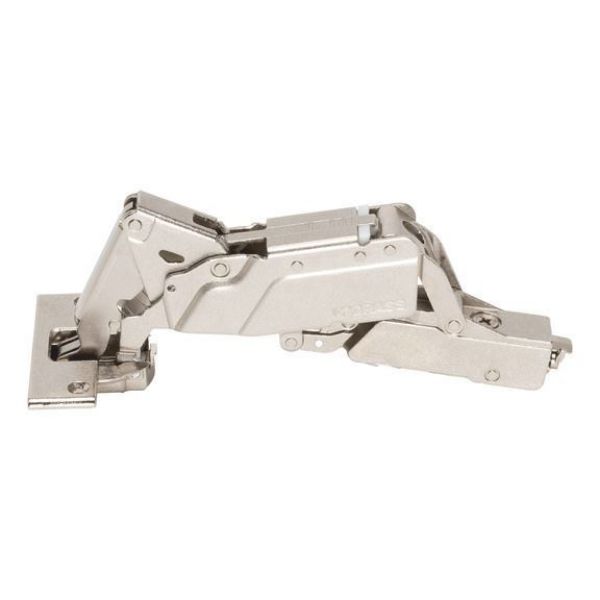

160° wide-angle hinge (door thicknesses up to 32 mm) TIOMOS HINGE 160 F/O 48/6 NO DAMPER NO SPRING GRASS
€5.13 inc. VAT price per 1 PCS
Available on Order
Price may vary
+ -
• 160° opening angle

• Convenient depth adjustment via worm gear

• For cabinets with inset drawers or pull-out shelves

• Optimum reveals for door thicknesses up to 32 mm

• 3-dimensional adjustment with appropriate mounting plate

• Minimum reveals

• Shallow cup depth

Available in 3 versions:

• With integrated damper (3 adjustable damping levels)

• Without integrated damper

• Without self-closing mechanism (without spring)
• 160° opening angle

• Convenient depth adjustment via worm gear

• For cabinets with inset drawers or pull-out shelves

• Optimum reveals for door thicknesses up to 32 mm

• 3-dimensional adjustment with appropriate mounting plate

• Minimum reveals

• Shallow cup depth

Available in 3 versions:

• With integrated damper (3 adjustable damping levels)

• Without integrated damper

• Without self-closing mechanism (without spring)
Products specifications
Cranking 0
With spring No
Type of assembly Screw-on
Hole drilling 48/6 mm
Material Die-cast zinc
Surface Nickel plated
Opening angle 160 Degree
Door Overlay Full Overlay
Products specifications
Cranking 0
With spring No
Type of assembly Screw-on
Hole drilling 48/6 mm
Material Die-cast zinc
Surface Nickel plated
Opening angle 160 Degree
Door Overlay Full Overlay
