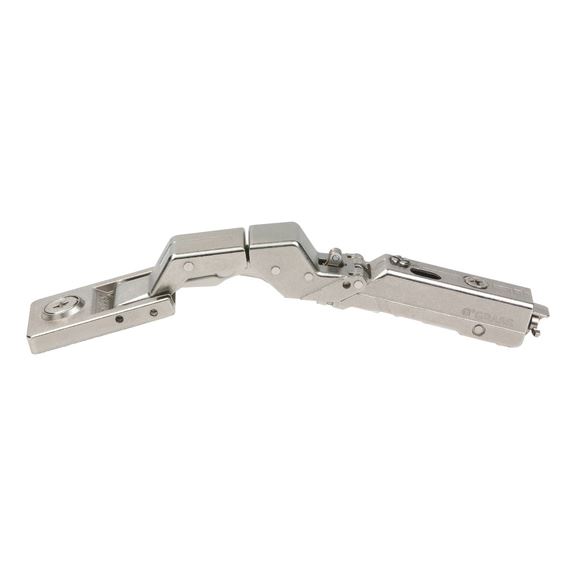

TIOMOS Mirro 125 mirror and glass door hinge

Article No. F029140325

Mirror and glass door hinge Tiomos MIRRO HNGE-TS-CLICKON-MIRRO-125 GRASS

€17.78 inc. VAT price per 1 PCS

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

Rapid final assembly without drilling through glass

Up to 19 mm mounting

Eccentric hinge/adapter connection

Available in 3 different versions

With integrated damping (3 adjustable damping levels)
Without integrated damping
Without automatic closing (no spring)

Notice

Tiomos Mirro hinges may not be used with eccentric mounting plates.

To bond the stainless steel adapter to mirrored glass, we recommend MAK 38 art. no. 0893580, for clear glass please contact your glass supplier.

Specified dimensions not binding. Subject to technical changes. A trial mounting is recommended.

Please note that Würth cannot accept any liability for the adhesive or bonding process used or any resulting claims.

Specification
Application
Technical Information

Rapid final assembly without drilling through glass

Up to 19 mm mounting

Eccentric hinge/adapter connection

Available in 3 different versions

With integrated damping (3 adjustable damping levels)
Without integrated damping
Without automatic closing (no spring)

Notice

Tiomos Mirro hinges may not be used with eccentric mounting plates.

To bond the stainless steel adapter to mirrored glass, we recommend MAK 38 art. no. 0893580, for clear glass please contact your glass supplier.

Specified dimensions not binding. Subject to technical changes. A trial mounting is recommended.

Please note that Würth cannot accept any liability for the adhesive or bonding process used or any resulting claims.

Application area

For mirror and clear glass doors with corresponding adhesive adapters

Instructions

Inset mounting can be achieved by changing the attachment distance of the mounting plate (X) and using a small bonding distance (Z).

All gaps for mirror and glass doors must be at least 1.5 mm (to avoid a risk of breakage).

The interior door edge must not touch the body when the door is opened.

Please consult your glass or door supplier for advice on the best adhesive and bonding process for attaching the hinge mount to mirror and clear glass doors.

Products specifications

Cushioning effect	Yes
With spring	Yes
Type of assembly	Fit with adhesive
Suitable for min./max. door thickness	3-8 mm
Material	Steel / Zamak
Surface	Nickel-plated
Opening angle	125 Degree

Products specifications

Cushioning effect	Yes
With spring	Yes
Type of assembly	Fit with adhesive
Suitable for min./max. door thickness	3-8 mm
Material	Steel / Zamak
Surface	Nickel-plated
Opening angle	125 Degree
