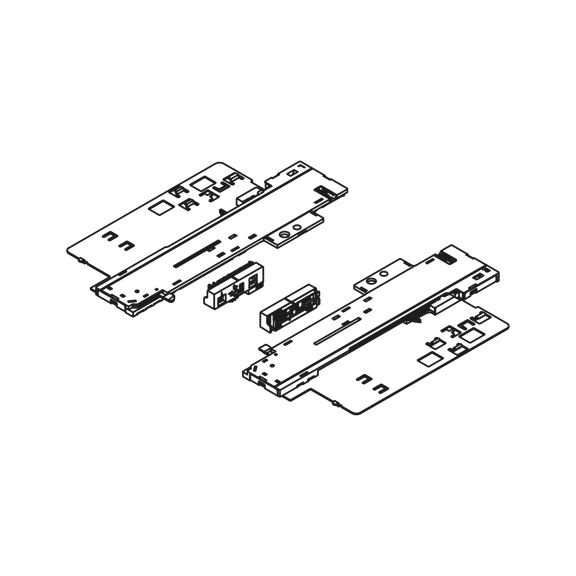

Tipmatic unit

Article No. F134109323

Tipmatic unit for Dynapro Soft-close AY-TM-UNT-UFLRGUID-DYNAPRO GRASS

€41.30 inc. VAT price per 1 PCS

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

Can be used for Dynapro soft-close full extension

Mechanical opening system for handle-free fronts
Combines Tipmatic function with soft-close damping
Tool-free assembly of the Tipmatic soft-close unit
One unit for all nominal lengths and weight classes
3-stage adjustment of the ejection force
Front reveal adjustment -1/+3 mm

Specified dimensions not binding. Subject to technical changes!

Specification
Technical Information
Documents

Can be used for Dynapro soft-close full extension

Mechanical opening system for handle-free fronts
Combines Tipmatic function with soft-close damping
Tool-free assembly of the Tipmatic soft-close unit
One unit for all nominal lengths and weight classes
3-stage adjustment of the ejection force
Front reveal adjustment -1/+3 mm

Specified dimensions not binding. Subject to technical changes!

Products specifications

Material	Steel
Depth adjustment	+ 3 mm/- 1 mm
Suitable for drawer guide	Dynapro

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Certificates/Documents(5)

Assembly instruction 1

Products specifications

Material	Steel
Depth adjustment	+ 3 mm/- 1 mm
Suitable for drawer guide	Dynapro
