Twist drill bits HSS DIN 338 type RN TIN head - DRL-TWST-MET-DIN338-HSS-TK-D13,0MM

Twist drill bits HSS DIN 338 type RN TIN head

Article No. 0624021300

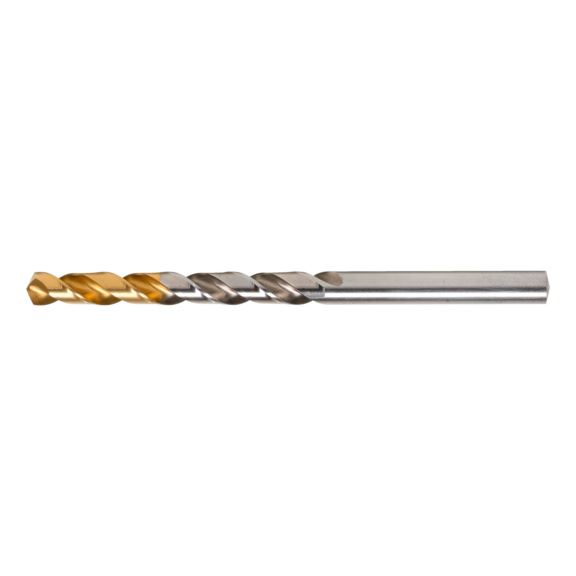

Twist drill bit HSS DIN 338 type RN TiN DRL-TWST-MET-DIN338-HSS-TK-D13,0MM ZEBRA

€16.05 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

TiN head coated steel precision drill for general, broad applications in steel up to 850 N/mm² strength and cast iron.

Precise & Quick drilling

The sturdy twist drill with its short design provides for precise drilling.
Very precise tip and the related precise cutting geometry, a constant drilled-hole quality is ensured, ideal for core hole drilling.
Optimized crosswise drill point narrowing provides 20% lower feed force saving compared with conventional drill bit.

Self-centering

The crosswise grinding ensures an excellent centering effect even on domed surfaces, eliminating the need for center-punching or piloting.

Long tool life

The TiN coating increase the heat resistance up to 600º, which provides 3 times more tool life in comparison with a non-coated HSS drill.

Notice

The Ø 13.0 mm drill shank is reduced to Ø 12.7 mm.

Specification
Technical Information
Documents

TiN head coated steel precision drill for general, broad applications in steel up to 850 N/mm² strength and cast iron.

Precise & Quick drilling

The sturdy twist drill with its short design provides for precise drilling.
Very precise tip and the related precise cutting geometry, a constant drilled-hole quality is ensured, ideal for core hole drilling.
Optimized crosswise drill point narrowing provides 20% lower feed force saving compared with conventional drill bit.

Self-centering

The crosswise grinding ensures an excellent centering effect even on domed surfaces, eliminating the need for center-punching or piloting.

Long tool life

The TiN coating increase the heat resistance up to 600º, which provides 3 times more tool life in comparison with a non-coated HSS drill.

Notice

The Ø 13.0 mm drill shank is reduced to Ø 12.7 mm.

Products specifications

Material to be processed	Steel
Diameter (Ø)	13 mm
Cutting material	HSS
Angle of the tip	130 Degree
Suitable for drill (points system)	3 of 4 points
Length	151 mm
Suitable for cordless drills (points system)	3 of 4 points
Suitable for upright drilling machine (points system)	3 of 4 points
Suitable for milling-drilling centre (points system)	2 of 4 points
Service life (points system)	4 of 4 points
Drilling speed (point system)	3 of 4 points
Bore hole quality (point system) ( )	4 of 4 points
Versatility (points system)	2 of 4 points
Drilling behaviour (point system)	3 of 4 points
Chip flute length	101 mm
Self-centring	Yes
Drilling depth	65 mm
