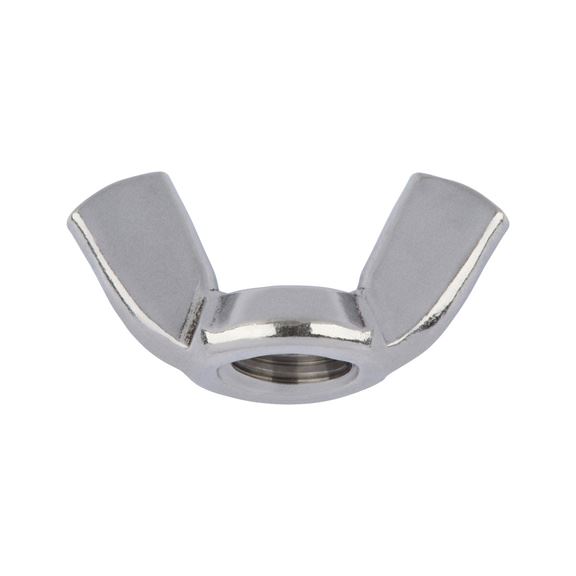

Wing nut, edged wing shape (American type)

Article No. 0340036

DIN 314 similar stainless steel A4 plain NUT-WING-SIDIN314-US-A4-M6

€0.31 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

DIN 314, stainless steel, A4, plain

DIN 314, stainless steel, A4, plain

Products specifications

Thread type x nominal diameter (D)	M6
Wing height (h₁)	13 mm
Width of wing on nut (e₁)	28 mm
Material	Stainless steel A4
Surface	Bare
Form	American type
Thread type	Metric thread
Outer diameter (d1)	12.5 mm
Wing thickness (g)	2.5 mm
