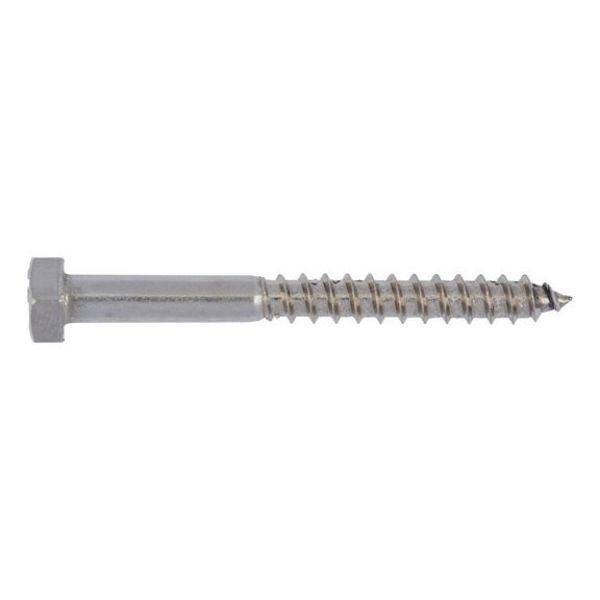

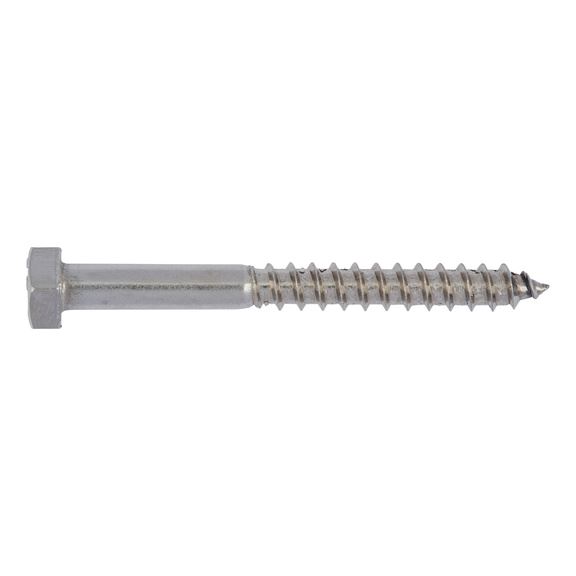

Wood screw, DIN 571 A2 Hexagon head

Article No. 0193760

DIN 571 plain A2 stainless steel SCR-HEX-DIN571-WO-A2-WS12-7X60

€39.88 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 571, stainless steel A2

For secure wood connections
Hexagon head for improved application of force when installing screws
The wood screw forms its nut thread instead of cutting.
A core hole must be pre-drilled depending on the diameter and type of wood (hardwood)

Notice

Hexagonal wood screws and plastic mushroom seals are used almost exclusively for securing corrugated Eternit sheets to wooden trusses.

Specification
Application
Technical Information
Documents

DIN 571, stainless steel A2

For secure wood connections
Hexagon head for improved application of force when installing screws
The wood screw forms its nut thread instead of cutting.
A core hole must be pre-drilled depending on the diameter and type of wood (hardwood)

Notice

Hexagonal wood screws and plastic mushroom seals are used almost exclusively for securing corrugated Eternit sheets to wooden trusses.

Application area

In timber construction work, especially when building prefabricated terraced houses, equipment halls, for trade-fair construction, boat building, vehicle construction etc.

Products specifications

Nominal diameter (d)	7 mm
Length (l)	60 mm
Head height (k)	5 mm
External drive (s₁)	WS12
Material	Stainless steel A2
Surface	Bare
Thread type	Wood screw thread
RoHS-compliant	Yes

Würth Catalogue(2)

Catalogue page as PDF 1 | 2

Flip catalog

Datasheets(1)

CAD Data (available after login)

Products specifications

Nominal diameter (d)	7 mm
Length (l)	60 mm
Head height (k)	5 mm
External drive (s₁)	WS12
Material	Stainless steel A2
Surface	Bare
Thread type	Wood screw thread
RoHS-compliant	Yes
