Picture of 1/2-inch jointed-head ratchet, extendable

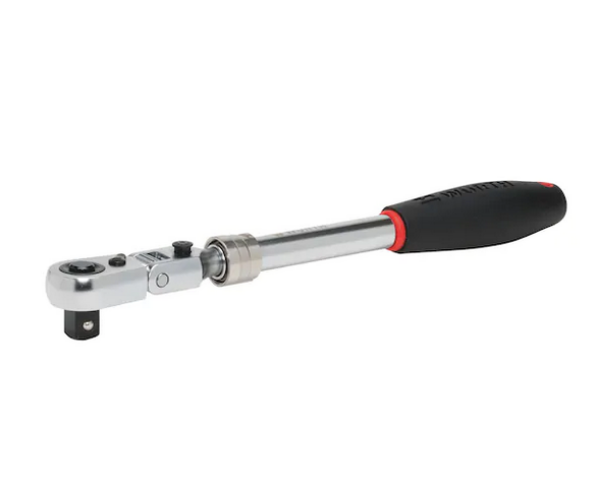

1/2-inch jointed-head ratchet, extendable

Article No. 07151392

Jointed-head ratchet 1/2 inch prolongable RTCH-JNTHD-1/2IN-(294-432MM)

€109.98 inc. VAT price per 1 PCS

LOW STOCK

Packaging Unit *

Qty:

+ -

Extendable up to max. 432 mm via locking sleeve with latch

Standard: DIN 3122, ISO 3315

Optimum power transmission

Extendable telescopic handle up to max. 432 mm

Easy to use

Quick release with safety lock
Flexible, rotating ratchet head with locking device. 72 teeth with a rotating angle of 5°.

Specification
Technical Information
Documents

Extendable up to max. 432 mm via locking sleeve with latch

Standard: DIN 3122, ISO 3315

Optimum power transmission

Extendable telescopic handle up to max. 432 mm

Easy to use

Quick release with safety lock
Flexible, rotating ratchet head with locking device. 72 teeth with a rotating angle of 5°.

Products specifications

Tip size	1/2 inch
Material	Chrome-vanadium steel
Surface	Chromed high-gloss satin finish
Material of handle	2-component plastic
Min./max. length (L1)	294-432 mm
Handle length (L3)	110 mm
Ratchet head height (B1)	15.5 mm
Ratchet head height with square (B2)	34 mm
Sleeve outside diameter (B3)	24 mm
Handle diameter (D1)	31 mm
Ratchet diameter (D2)	40 mm

Würth Catalogue (2)

Catalogue page as PDF 1

Products specifications

Tip size	1/2 inch
Material	Chrome-vanadium steel
Surface	Chromed high-gloss satin finish
Material of handle	2-component plastic
Min./max. length (L1)	294-432 mm
Handle length (L3)	110 mm
Ratchet head height (B1)	15.5 mm
Ratchet head height with square (B2)	34 mm
Sleeve outside diameter (B3)	24 mm
Handle diameter (D1)	31 mm
Ratchet diameter (D2)	40 mm
