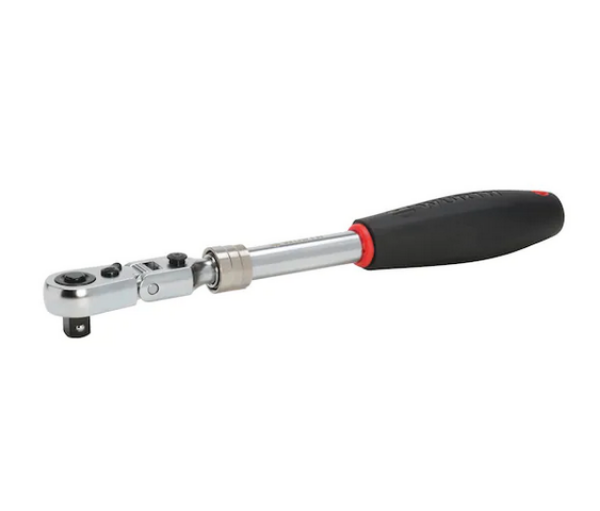

Picture of 3/8-inch jointed-head ratchet, extendable

3/8-inch jointed-head ratchet, extendable

Article No. 07151292

3/8 inch joint.-hd. ratchet, PP handle, extendible RTCH-JNTHD-3/8IN-(L258-373MM)-PLAHNDL

€95.76 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Extendable to max. 373 mm using locking sleeve with locking device

Standard: DIN 3122, ISO 3315

Optimum power transmission

Telescopic handle extendable to max. 373 mm

Comfortable work

Quick ejection with safety lock
Flexible, rotatable ratchet head with locking device. 72 teeth with a rotating angle of 5°.

Specification
Technical Information
Documents

Extendable to max. 373 mm using locking sleeve with locking device

Standard: DIN 3122, ISO 3315

Optimum power transmission

Telescopic handle extendable to max. 373 mm

Comfortable work

Quick ejection with safety lock
Flexible, rotatable ratchet head with locking device. 72 teeth with a rotating angle of 5°.

Products specifications

Tip size	3/8 inch
Material	Chrome-vanadium steel
Surface	Chromed high-gloss satin finish
Material of handle	2-component plastic
Min./max. length (L1)	258-373 mm
Handle length (L3)	110 mm
Ratchet head height (B1)	13 mm
Ratchet head height with square (B2)	26.5 mm
Sleeve outside diameter (B3)	20.6 mm
Handle diameter (D1)	31 mm
Ratchet diameter (D2)	37 mm

Würth Catalogue (2)

Catalogue page as PDF 1

Products specifications

Tip size	3/8 inch
Material	Chrome-vanadium steel
Surface	Chromed high-gloss satin finish
Material of handle	2-component plastic
Min./max. length (L1)	258-373 mm
Handle length (L3)	110 mm
Ratchet head height (B1)	13 mm
Ratchet head height with square (B2)	26.5 mm
Sleeve outside diameter (B3)	20.6 mm
Handle diameter (D1)	31 mm
Ratchet diameter (D2)	37 mm
