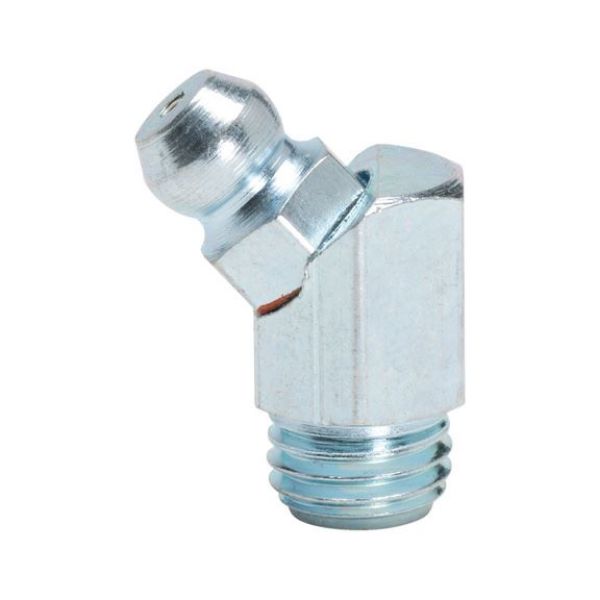

45° conical nipple, shape B

Article No. 098650

DIN 71412 galvanised steel, 45 degrees, shape B NPL-DIN71412-H2-(A2K)-M6X1

€0.70 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

DIN 71412 B, galvanised steel, blue passivated (A2K), self-locking tapered external thread

DIN 71412 B, galvanised steel, blue passivated (A2K), self-locking tapered external thread

Products specifications

Thread type x nominal diameter x pitch (d₁)	M6 x 1
Length (l₁)	20 mm
Thread length (metric thread) (l_g)	5.5 mm
Width across flats (s₁)	9 mm
Material	Steel
Surface	Galvanised
Standards	DIN 71412
Form	B, H2
Pitch	1 mm
RoHS-compliant	Yes
Product weight (per item)	6.800 g
