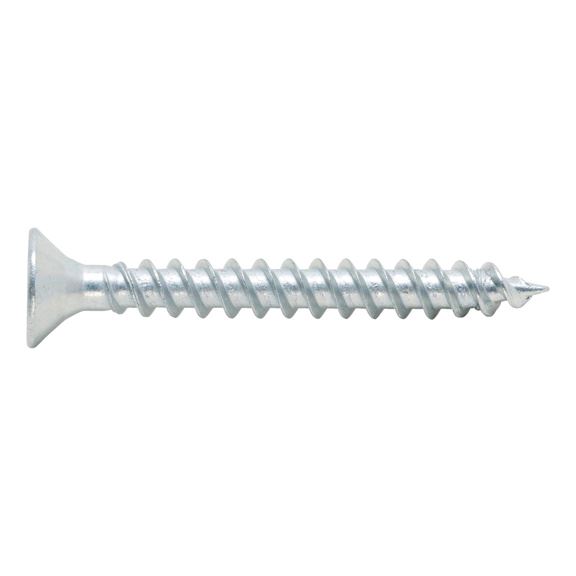

ASSY® 3.0, blue galvanised Particle board screw

Article No. 017004025
ASSY 3.0 galv stl full thread countersunk head AW SCR-CS-WO-AW20-(A2K)-4X25/21 ASSY 3.0
€0.02 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
For universal use in furniture construction, shopfitting, fitting attachments and interior fittings.

Galvanised steel, blue coated, full thread, countersunk head, AW drive

Joins wood instead of splitting it

Asymmetrical thread – greater speed

  • Low screw-in torque
  • High over-turning force
  • Faster screwing than conventional particle board screws
  • Double thread: 3.0–4.5 mm

AW drive — more power

  • Optimal force transmission
  • Excellent fit
  • Rapid finding
  • Screw settles securely
  • Virtually no unscrewing of bit
  • No wobbling
  • No damage to surface coating of screw
  • Only 5 bit sizes for diameters 3.0 to 12.0 mm

Ring thread — less tendency of the wood to split, very few blow-outs

  • Low splitting forces, in particular when screwing close to edges
  • Reduction of screw-in torque
  • Punch effect of ring thread largely prevents blow-outs
Notice

The screws are not suitable for outdoor use and for rooms subject to short-term or continuous high moisture levels! Please use ASSY® 3.0 A2 stainless steel screws in these cases.

To attach metals to wood, machine a precise cutout in the metal tab.

ASSY 3.0 chipboard screws are optimised for use in wooden materials. When used in plastic anchors, a reduction of the load-bearing capacity is possible. Therefore, we recommend only using screws without optimised thread tips (drill bit, mating thread, ring thread, serrated edge, self-clearing groove, etc.) in plastic dowels, e.g. Würth ASSY D, prefix 0151 (countersunk head) and prefix 0153 (pan head).

Available work documents:

Timber dimensioning software, load tables and detailed processing instructions can be found on the service page: www.wuerth.de/assy.

Proof of Performance

ETA-11/0190

When using these screws, please follow ETA-11/0190 specifications.
For universal use in furniture construction, shopfitting, fitting attachments and interior fittings.

Galvanised steel, blue coated, full thread, countersunk head, AW drive

Joins wood instead of splitting it

Asymmetrical thread – greater speed

  • Low screw-in torque
  • High over-turning force
  • Faster screwing than conventional particle board screws
  • Double thread: 3.0–4.5 mm

AW drive — more power

  • Optimal force transmission
  • Excellent fit
  • Rapid finding
  • Screw settles securely
  • Virtually no unscrewing of bit
  • No wobbling
  • No damage to surface coating of screw
  • Only 5 bit sizes for diameters 3.0 to 12.0 mm

Ring thread — less tendency of the wood to split, very few blow-outs

  • Low splitting forces, in particular when screwing close to edges
  • Reduction of screw-in torque
  • Punch effect of ring thread largely prevents blow-outs
Notice

The screws are not suitable for outdoor use and for rooms subject to short-term or continuous high moisture levels! Please use ASSY® 3.0 A2 stainless steel screws in these cases.

To attach metals to wood, machine a precise cutout in the metal tab.

ASSY 3.0 chipboard screws are optimised for use in wooden materials. When used in plastic anchors, a reduction of the load-bearing capacity is possible. Therefore, we recommend only using screws without optimised thread tips (drill bit, mating thread, ring thread, serrated edge, self-clearing groove, etc.) in plastic dowels, e.g. Würth ASSY D, prefix 0151 (countersunk head) and prefix 0153 (pan head).

Available work documents:

Timber dimensioning software, load tables and detailed processing instructions can be found on the service page: www.wuerth.de/assy.

Proof of Performance

ETA-11/0190

When using these screws, please follow ETA-11/0190 specifications.
Application areaFor universal use in furniture construction, shopfitting, fitting attachments and interior fittings.
InstructionsFor coniferous wood or wood-based materials made from softwood, make the fitting without a bradawl. To reduce the edge distances make a predrilled hole according to the core diameter.
When screwing into hardwood, drill according to ETA-11/0190.
Products specifications
Nominal diameter (d) 4 mm
Length (l) 25 mm
Head type Countersunk head
Head diameter (dh) 7.9 mm
Head height (k) 2.7 mm
Internal drive AW20
Thread type Wood screw thread
Thread design Full thread
Thread format Single thread
Thread length (lg) 21 mm
Core diameter 2.5 mm
Shape of tip Tip with ring thread
Angle of the tip 34 Degree
Material Hardened steel
Surface Galvanised
Colour Silver
Min./max. screw-in angle 0-90 Degree
Product weight (per item) 1.440 g
Suitable for use in the following materials Wood<br>Derived timber product<br>Softwood<br>Board ply wood<br>Hardwood<br>LVL
Area of application Universal<br>Furniture<br>Body<br>Fitting
Approval ETA-11/0190
Screw requiring approval Yes
RoHS-compliant Yes
Products specifications
Nominal diameter (d) 4 mm
Length (l) 25 mm
Head type Countersunk head
Head diameter (dh) 7.9 mm
Head height (k) 2.7 mm
Internal drive AW20
Thread type Wood screw thread
Thread design Full thread
Thread format Single thread
Thread length (lg) 21 mm
Core diameter 2.5 mm
Shape of tip Tip with ring thread
Angle of the tip 34 Degree
Material Hardened steel
Surface Galvanised
Colour Silver
Min./max. screw-in angle 0-90 Degree
Product weight (per item) 1.440 g
Suitable for use in the following materials Wood<br>Derived timber product<br>Softwood<br>Board ply wood<br>Hardwood<br>LVL
Area of application Universal<br>Furniture<br>Body<br>Fitting
Approval ETA-11/0190
Screw requiring approval Yes
RoHS-compliant Yes
