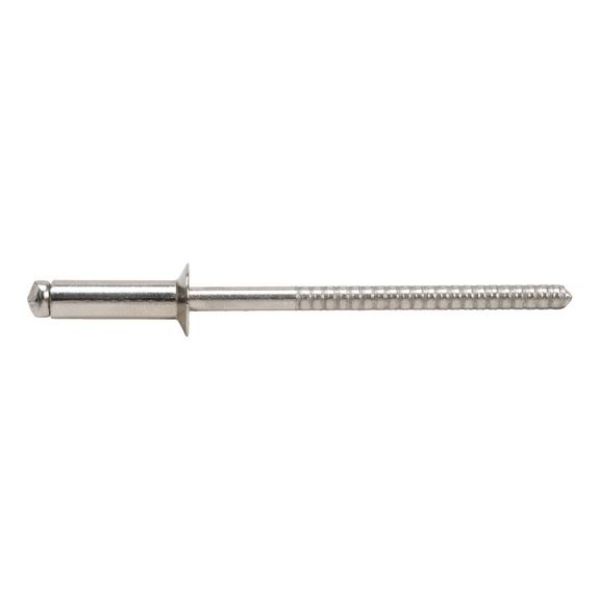

Blind rivet, 120° countersunk head

Article No. 0931554816

Blind rivet w. countersunk head, 120 degrees A2/A2 RIV-CS-A2/A2-(8,0-11,0)-4,8X16,0

€0.19 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

Sleeve: Stainless steel A2, plain, pin: Stainless steel A2, plain

Sleeve: Stainless steel A2, plain, pin: Stainless steel A2, plain

Products specifications

Nominal diameter (d₁)	4.8 mm
Length (l₁)	16 mm
Head diameter (d_k)	9 mm
Head height (k₁)	1.2 mm
Material of the sleeve	Stainless steel A2
Material of the mandrel	Stainless steel A2
Surface of the sleeve	Plain
Surface of the mandrel	Plain
Min./max. grip range	8.0-11.0 mm
Shear-fracture load	3800 N
Tensile fracture load	4500 N
Nominal diameter x length (Ø d x l)	4.8 x 16.0 mm
Product weight (per item)	4.200 g
