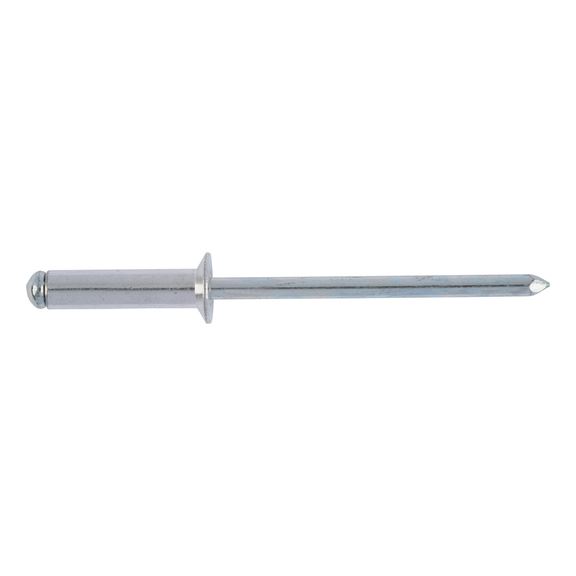

Blind rivet, open, with break mandrel and countersunk head

Article No. 093864010

ISO 15978 countersunk head, alu/steel zinc-plated RIV-ISO15978-L-ALU/ST-(5,0-6,5)-4,0X10

€0.04 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

ISO 15978 countersunk head aluminium/steel

Sleeve: Plain aluminium; pin: Galvanized steel, blue passivated

ISO 15978 countersunk head aluminium/steel

Sleeve: Plain aluminium; pin: Galvanized steel, blue passivated

Products specifications

Nominal diameter (d₁)	4 mm
Length (l₁)	10 mm
Head diameter (d_k)	8.4 mm
Head height (k₁)	1.7 mm
Material of the sleeve	Aluminium
Material of the mandrel	Steel
Surface of the sleeve	Plain
Surface of the mandrel	Galvanised
Min./max. grip range	5.0-6.5 mm
Drill hole diameter	4.1 mm
Shear-fracture load	850 N
Tensile fracture load	1200 N
Nominal diameter x length (Ø d x l)	4.0 x 10.0 mm
Product weight (per item)	1.4 g
