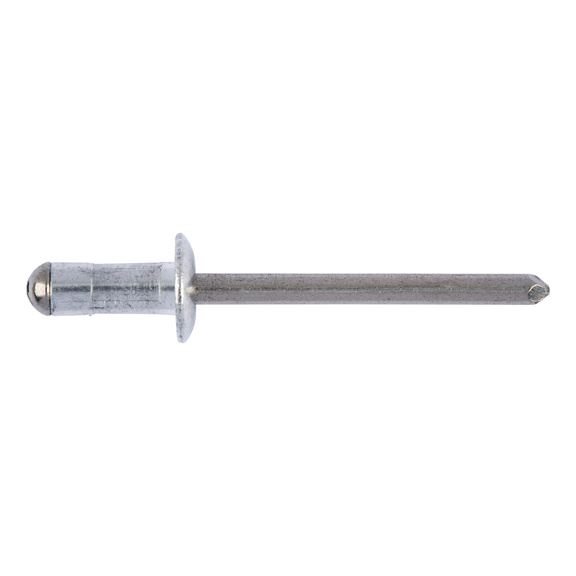

Blind rivet, round pan head

Article No. 091448110

Blind rivet round pan head mid-strength alu/A2 RIV-MHD-ALU/A2-(4,5-11,0)-4,8X15 ZEBRA

€0.11 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Sleeve: Aluminium. Mandrel: A2 stainless steel

Specification
Technical Information
Documents

Sleeve: Aluminium. Mandrel: A2 stainless steel

Products specifications

Nominal diameter (d₁)	4.8 mm
Length (l₁)	15 mm
Min./max. grip range	4.5-11.0 mm
Head diameter (d_k)	9.9 mm
Head height (k₁)	1.6 mm
Shear-fracture load	1470 N
Tensile fracture load	2400 N
Material of the sleeve	Aluminium
Material of the mandrel	Stainless steel A2
Surface of the sleeve	Plain
Surface of the mandrel	Plain

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Nominal diameter (d₁)	4.8 mm
Length (l₁)	15 mm
Min./max. grip range	4.5-11.0 mm
Head diameter (d_k)	9.9 mm
Head height (k₁)	1.6 mm
Shear-fracture load	1470 N
Tensile fracture load	2400 N
Material of the sleeve	Aluminium
Material of the mandrel	Stainless steel A2
Surface of the sleeve	Plain
Surface of the mandrel	Plain
