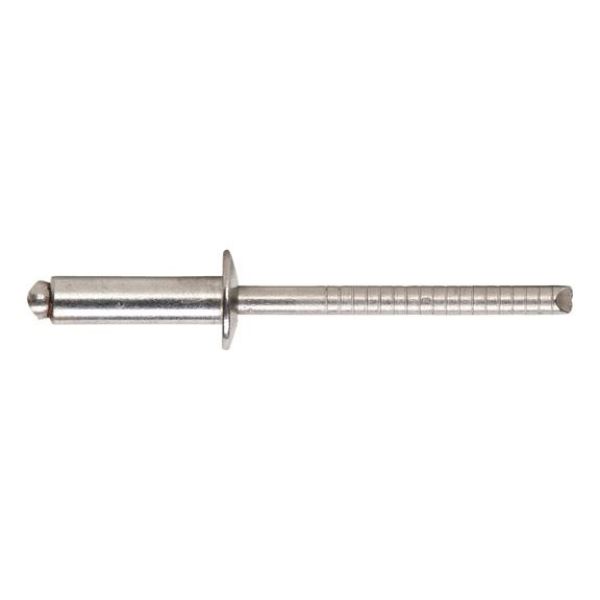

Blind rivet, round pan head

Article No. 0931525

Blind rivet, rd pn hd, stnlss stl A2 s/s A2 RIV-MHD-A2/A2-(15,0-20,0)-5X25

€0.19 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Sleeve: A2 stainless steel. Mandrel: A2 stainless steel

Specification
Technical Information
Documents

Sleeve: A2 stainless steel. Mandrel: A2 stainless steel

Products specifications

Nominal diameter (d₁)	5 mm
Length (l₁)	25 mm
Min./max. grip range	15-20 mm
Shear-fracture load	5000 N
Tensile fracture load	4200 N
Material of the sleeve	Stainless steel A2
Material of the mandrel	Stainless steel A2
Drill hole diameter	5.1 mm

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Nominal diameter (d₁)	5 mm
Length (l₁)	25 mm
Min./max. grip range	15-20 mm
Shear-fracture load	5000 N
Tensile fracture load	4200 N
Material of the sleeve	Stainless steel A2
Material of the mandrel	Stainless steel A2
Drill hole diameter	5.1 mm
