Blind rivet, round pan head - RIV-MHD-A2/A2-(5,0-7,0)-3X10

Blind rivet, round pan head - RIV-MHD-A2/A2-(5,0-7,0)-3X10

Blind rivet, round pan head - RIV-MHD-A2/A2-(5,0-7,0)-3X10

Blind rivet, round pan head - RIV-MHD-A2/A2-(5,0-7,0)-3X10

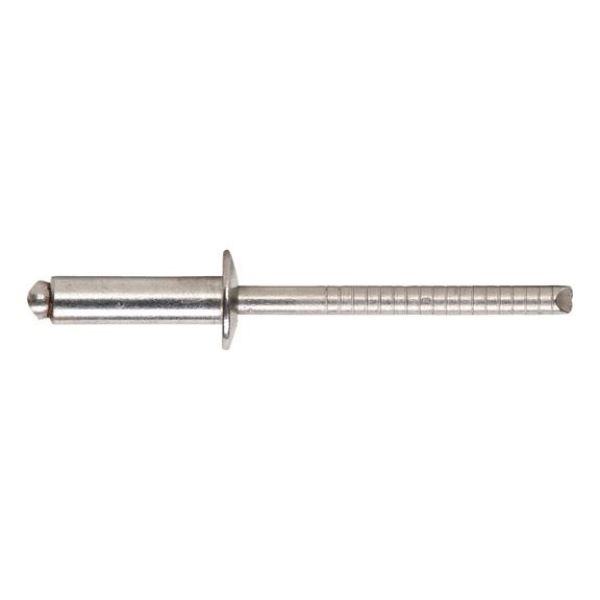

Blind rivet, round pan head

Article No. 093193010

Blind rivet, rd pn hd, stnlss stl A2 s/s A2 RIV-MHD-A2/A2-(5,0-7,0)-3X10

€11.80 inc. VAT price per 100 PCS

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

Sleeve: A2 stainless steel. Mandrel: A2 stainless steel

Specification
Technical Information
Documents

Sleeve: A2 stainless steel. Mandrel: A2 stainless steel

Products specifications

Nominal diameter (d₁)	3 mm
Length (l₁)	10 mm
Min./max. grip range	5.0-7.0 mm
Head diameter (d_k)	6.5 mm
Head height (k₁)	0.8 mm
Shear-fracture load	1600 N
Tensile fracture load	2000 N
Material of the sleeve	Stainless steel A2
Material of the mandrel	Stainless steel A2
Surface of the sleeve	Plain
Surface of the mandrel	Plain
Drill hole diameter	3.1 mm

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Nominal diameter (d₁)	3 mm
Length (l₁)	10 mm
Min./max. grip range	5.0-7.0 mm
Head diameter (d_k)	6.5 mm
Head height (k₁)	0.8 mm
Shear-fracture load	1600 N
Tensile fracture load	2000 N
Material of the sleeve	Stainless steel A2
Material of the mandrel	Stainless steel A2
Surface of the sleeve	Plain
Surface of the mandrel	Plain
Drill hole diameter	3.1 mm
