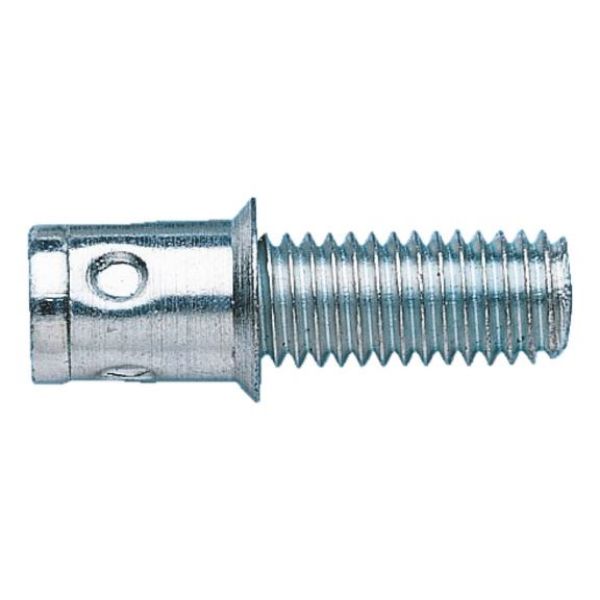

Blind riveting screw with countersunk head

Article No. 094871510

Blind rivet bolt countersunk head steel galv. BLT-RIV-CS-(A2K)-(1,5-2,9)-M5X10

€0.65 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

Countersunk head, galvanised steel, blue passivated (A2K)

For heavy-duty screw thread in thin-walled materials.
Fulfil the functions of standard screws that are welded on or inserted from behind.

Countersunk head, galvanised steel, blue passivated (A2K)

For heavy-duty screw thread in thin-walled materials.
Fulfil the functions of standard screws that are welded on or inserted from behind.

Products specifications

Thread type x nominal diameter (D)	M5
Rivet diameter (d₁)	6.5 mm
Plunged hoss diameter (d₂)	9 mm
Length (l₁)	10 mm
Head diameter (d_k)	9 mm
Head height (k₁)	1.1 mm
Material	Steel
Surface	Galvanised
Min./max. grip range	1.5-2.9 mm
Tightening torque	6 Nm
Max. tensile force	8000 N
Shear-fracture load	9500 N
Head type	Countersunk head
Drill hole diameter	6.6 mm
