Brass anchor

Article No. 090438

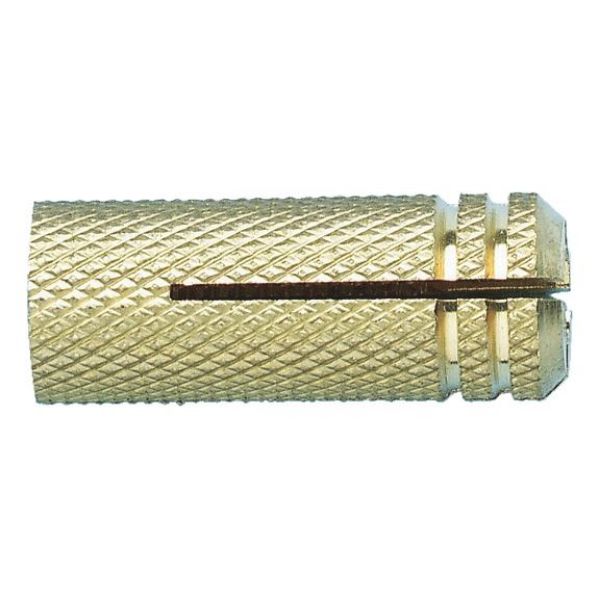

Brass anchor DWL-BRS-M8-10X30

€30.68 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

Female thread with metric thread as an inexpensive alternative for outdoor use, for concrete and solid brick

Brass female thread anchor
Knurled surface for good holding power
Screwing in a screw/threaded rod with a metric thread expands the anchor and fixes it in the anchoring base
Corrosion resistant
Minimal anchorage depth
Minimal edge and axial clearance
Suitable for push-through and cotter-pin installation
Used without a setting tool
Cost-effective attachment for outdoor use

Female thread with metric thread as an inexpensive alternative for outdoor use, for concrete and solid brick

Brass female thread anchor
Knurled surface for good holding power
Screwing in a screw/threaded rod with a metric thread expands the anchor and fixes it in the anchoring base
Corrosion resistant
Minimal anchorage depth
Minimal edge and axial clearance
Suitable for push-through and cotter-pin installation
Used without a setting tool
Cost-effective attachment for outdoor use

Application area

For indoor and outdoor secondary attachments

For attaching components to concrete and solid brick

For spaced installation in conjunction with a threaded rod

Products specifications

Internal diameter	8 mm
Anchor length (l) (l)	30 mm
Embedding depth (h s)	30 mm
Drill hole depth (t)	35 mm
Nominal drill-bit diameter (d 0)	10 mm
Centre-to-centre distance (a)	80 mm
Edge clearance (a r)	80 mm
Minimum component thickness (d)	70 mm
Hole diameter in component (d Bau)	8.5 mm
Max. attachment height (d a) - condition	Dependent on screw length
Outer diameter	10 mm

Würth Catalogue(2)

Catalogue page as PDF 1 | 2

Products specifications

Internal diameter	8 mm
Anchor length (l) (l)	30 mm
Embedding depth (h s)	30 mm
Drill hole depth (t)	35 mm
Nominal drill-bit diameter (d 0)	10 mm
Centre-to-centre distance (a)	80 mm
Edge clearance (a r)	80 mm
Minimum component thickness (d)	70 mm
Hole diameter in component (d Bau)	8.5 mm
Max. attachment height (d a) - condition	Dependent on screw length
Outer diameter	10 mm
