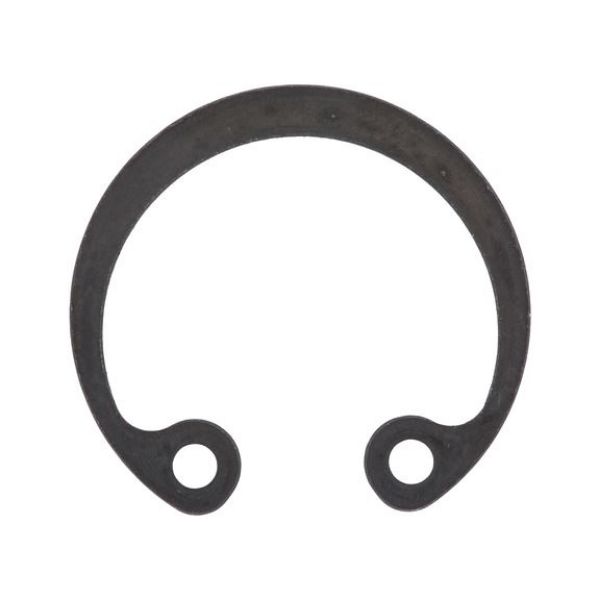

Circlip for bore hole Standard design, shape J

Article No. 043970

DIN 472 spring steel plain, shape J CRCLIP-BRE-DIN472-J-70X2,5

€1.27 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

DIN 472 for bore holes, spring steel, phosphated and oiled

DIN 472 for bore holes, spring steel, phosphated and oiled

Products specifications

Suitable for holes	70 mm
Suitable for groove diameter	73 mm
Outer diameter (d₁)	74.5 mm
Eye width (a₁)	7.8 mm
Width (b₁)	6.2 mm
Thickness (s₁)	2.5 mm
Material	Spring steel
Surface	Bare
Form	J
Version	Standard design
